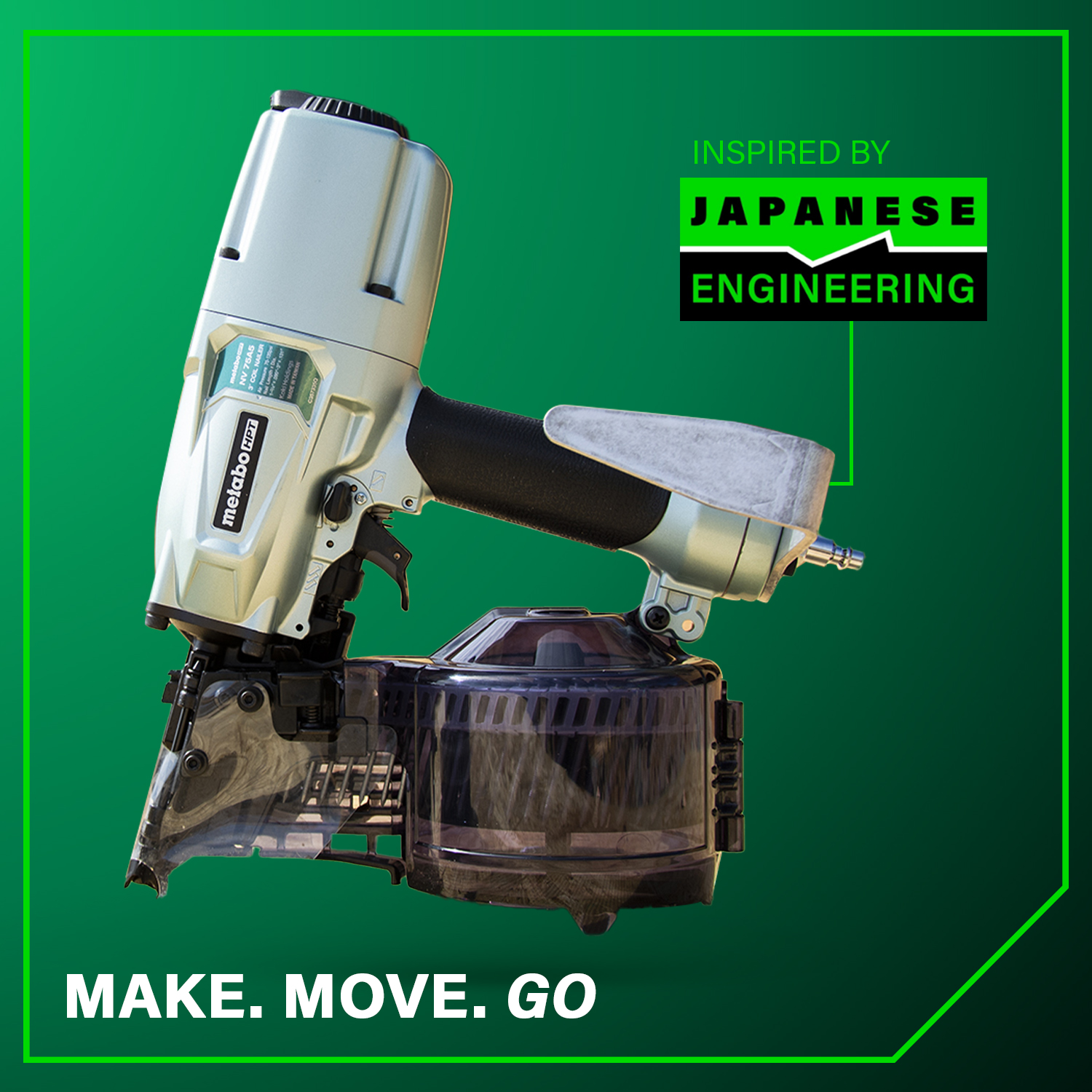

3 Inch Siding/Light Framing (Sheathing) Coil Nailer | Metabo HPT NV75A5
Model# NV75A5
- AWARDS: Rated the Pro Preferred Nailer for 11 years running (2014 - 2024) by Builder and Developer Magazine
- FASTENERS: Accepts 16º wire coil nails from 1-3/4" - 3" and 15º plastic coil nails from 1-3/4" - 2-1/4"
- LIGHTWEIGHT: Only 5.7 lbs for easy maneuverability

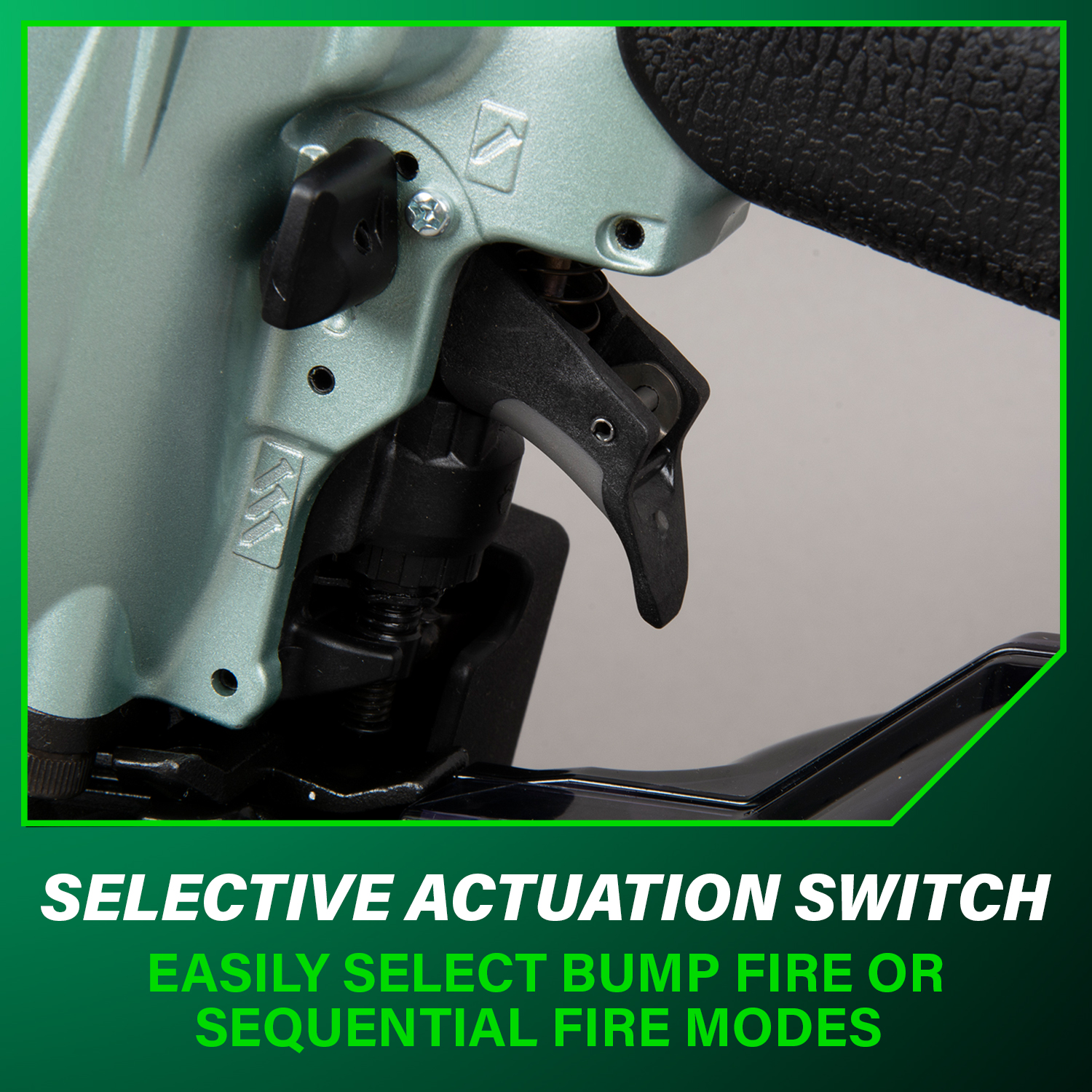

- SELECTIVE ACTUATION: Allows for quick changes between sequential and contact nailing with the flip of a switch
- EASY LOAD: Side load, tilt bottom magazine for fast and easy reloads
- AWARDS: Rated the Pro Preferred Nailer for 11 years running (2014 - 2024) by Builder and Developer Magazine
- FASTENERS: Accepts 16º wire coil nails from 1-3/4" - 3" and 15º plastic coil nails from 1-3/4" - 2-1/4"
- LIGHTWEIGHT: Only 5.7 lbs for easy maneuverability
- SELECTIVE ACTUATION: Allows for quick changes between sequential and contact nailing with the flip of a switch
- EASY LOAD: Side load, tilt bottom magazine for fast and easy reloads
Features

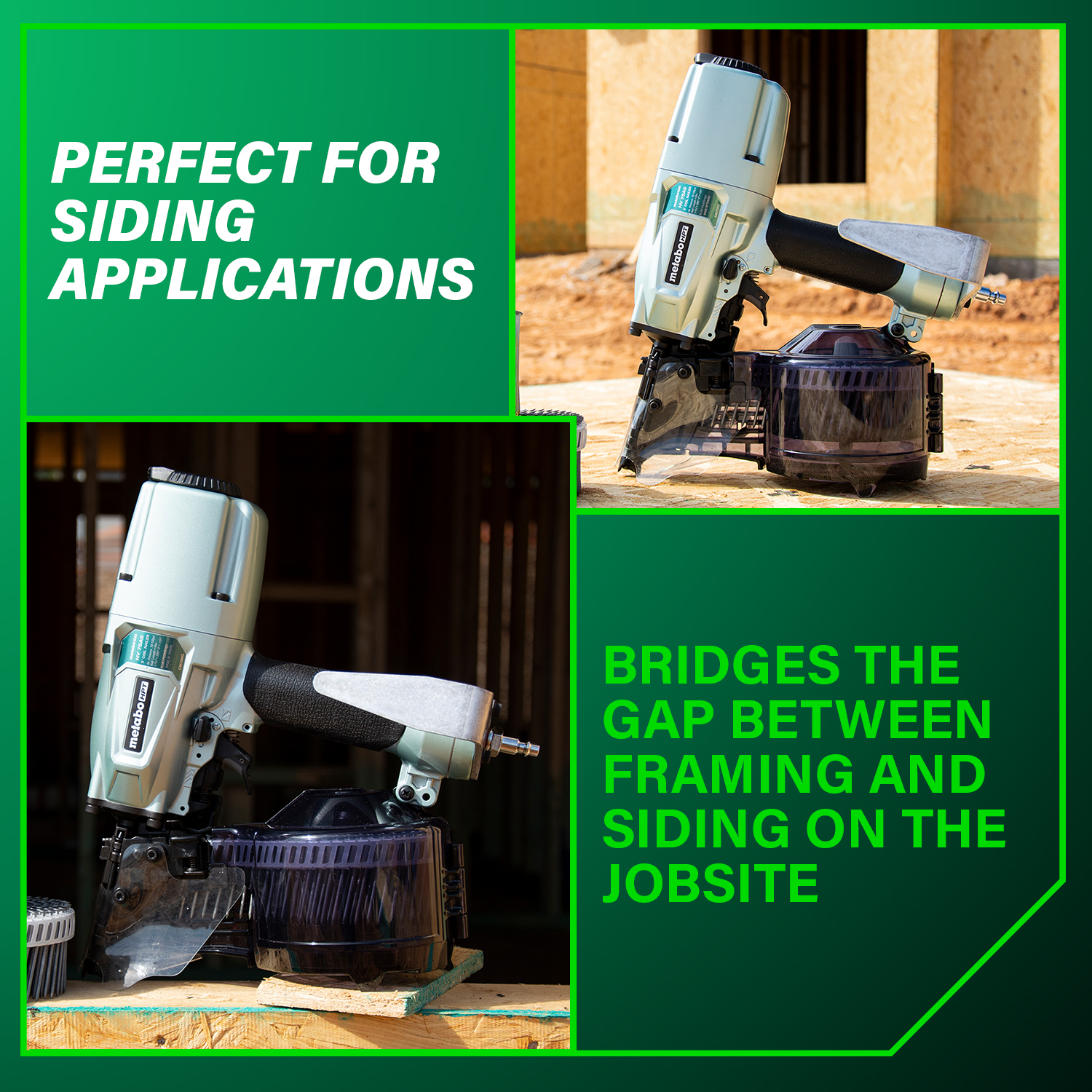

The 3 Inch Siding/Light Framing Coil Nailer (NV75A5) bridges the gap between framing and siding on the jobsite. It has the power to frame and the precision and convenient features needed for siding work. The capability to drive up to 3" x 0.131" fasteners, and adjustable depth of drive make it the perfect tool for sheathing applications. Its light weight (5.7 lbs), flexibility to accept wire and plastic collated nails, no mar nose cap, and selective actuation give it the convenience needed for siding applications.
Additional features like the side-load tilt bottom magazine, 360º adjustable air deflector, aluminum rafter hook, and plastic shield make the NV75A5 the tool of choice for any framing and siding crews!
Additional features like the side-load tilt bottom magazine, 360º adjustable air deflector, aluminum rafter hook, and plastic shield make the NV75A5 the tool of choice for any framing and siding crews!
Features of the 3 Inch Siding/Light Framing (Sheathing) Coil Nailer
- AWARDS: Rated the Pro Preferred Nailer for 11 years running (2014 - 2024) by Builder and Developer Magazine

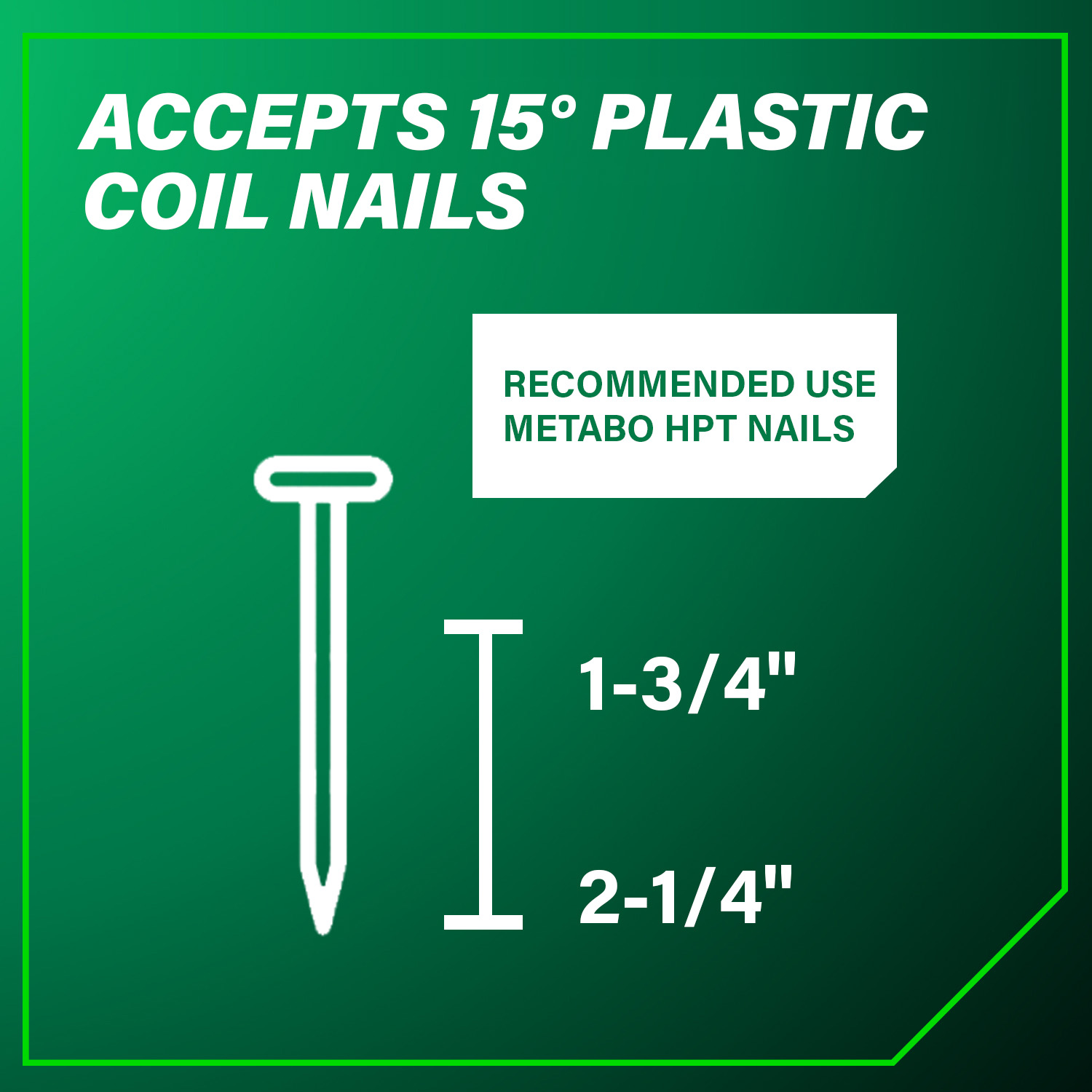

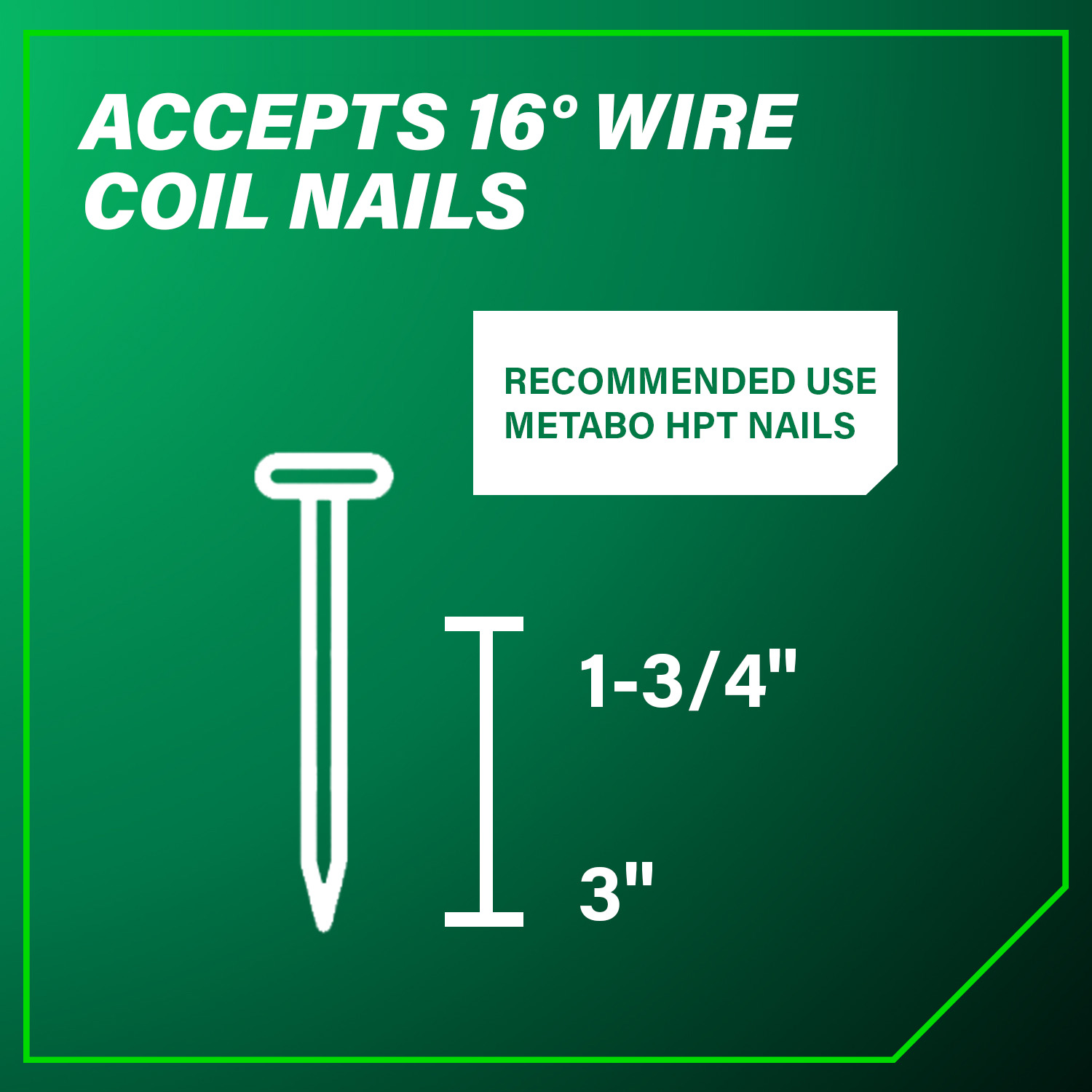

- FASTENERS: Accepts 16º wire coil nails from 1-3/4" - 3" and 15º plastic coil nails from 1-3/4" - 2-1/4"

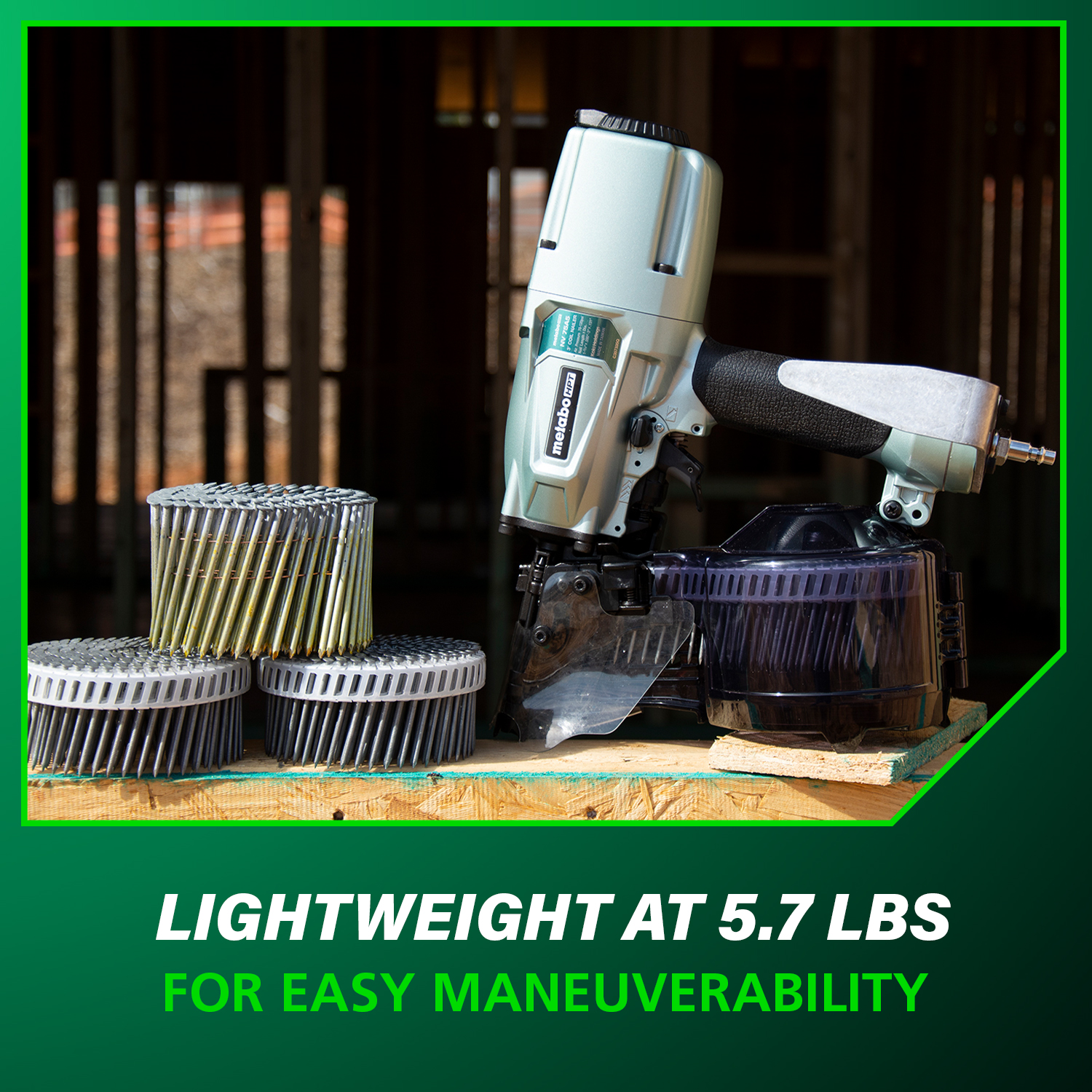

- LIGHTWEIGHT: Only 5.7 lbs for easy maneuverability

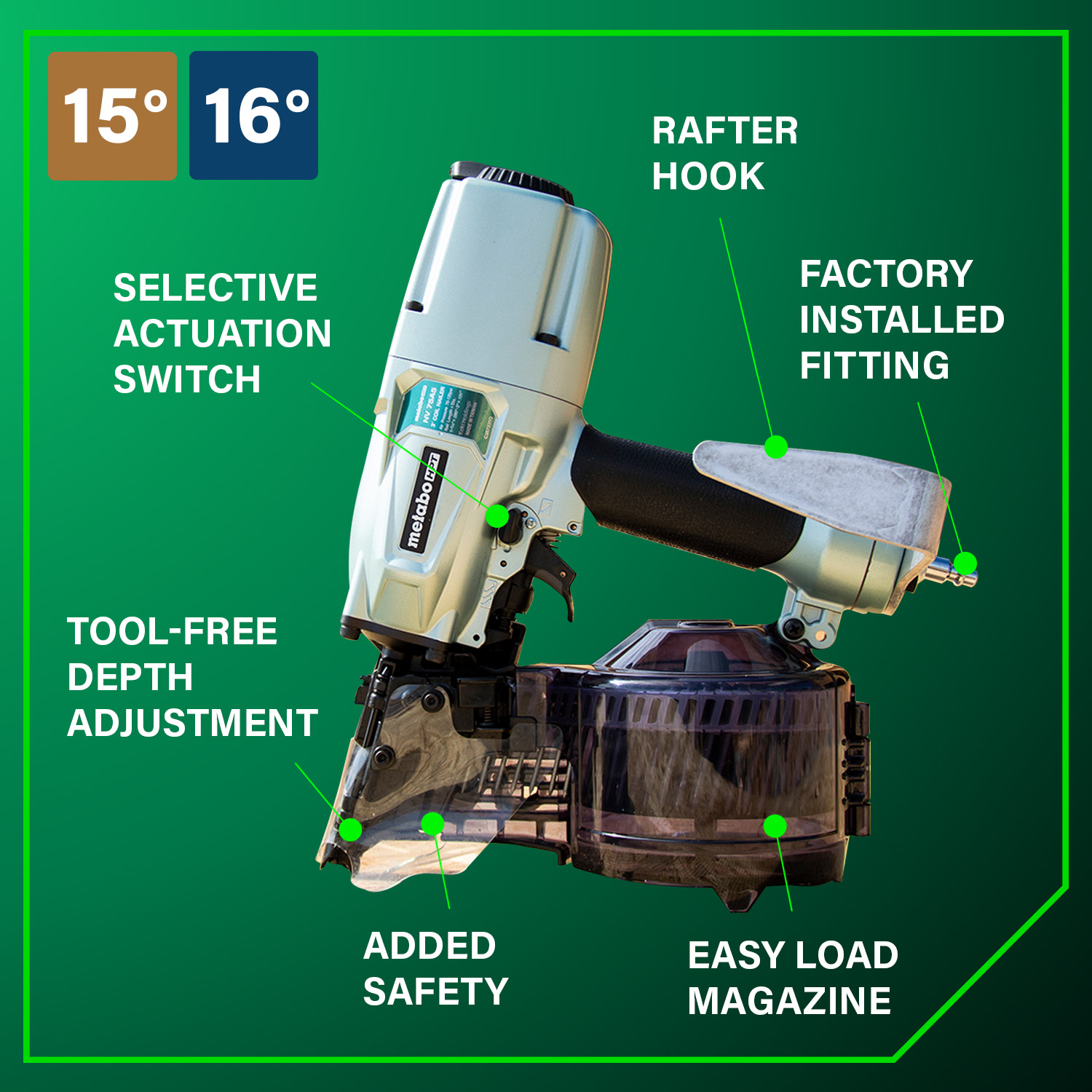

- SELECTIVE ACTUATION: Allows for quick changes between sequential and contact nailing with the flip of a switch

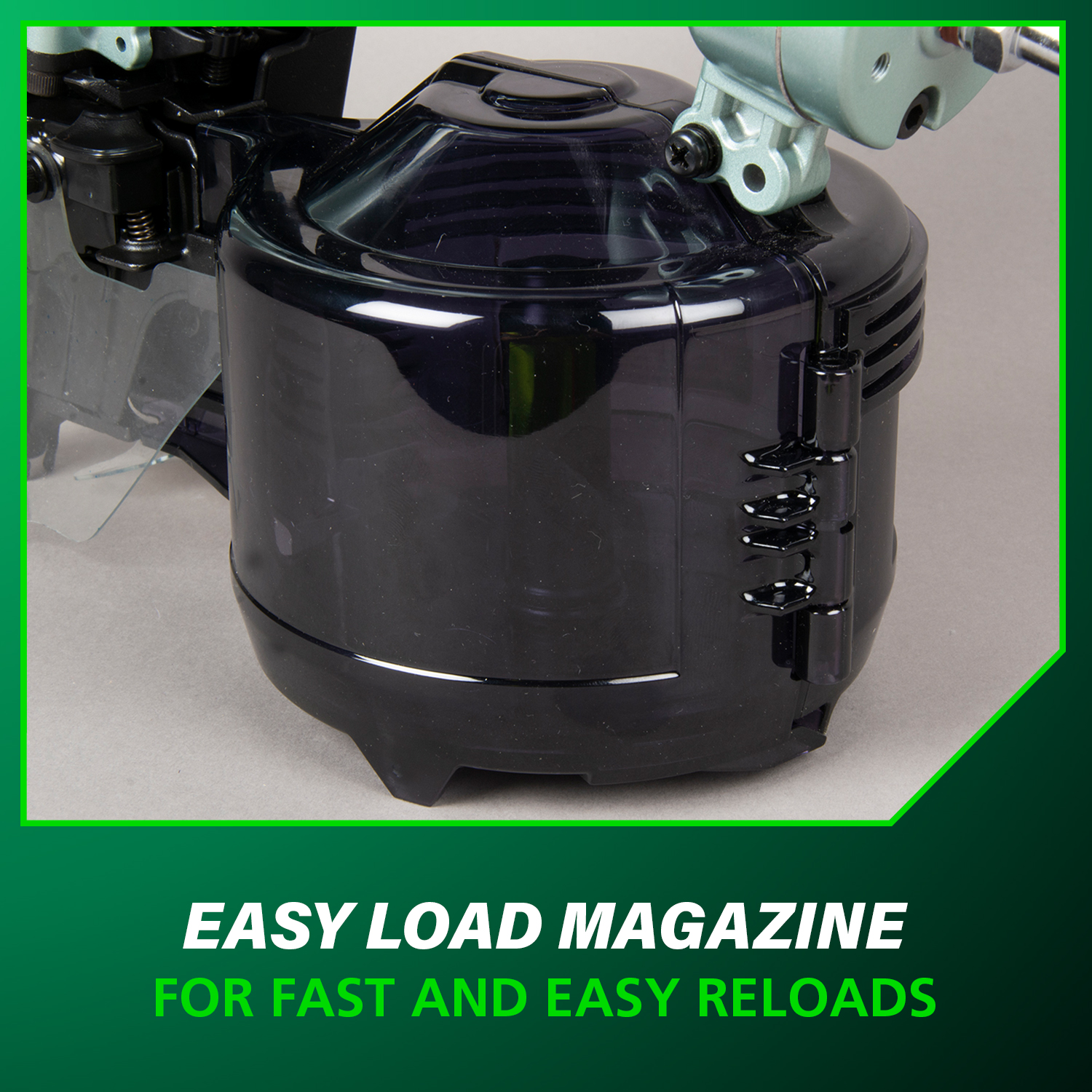

- EASY LOAD: Side load, tilt bottom magazine for fast and easy reloads

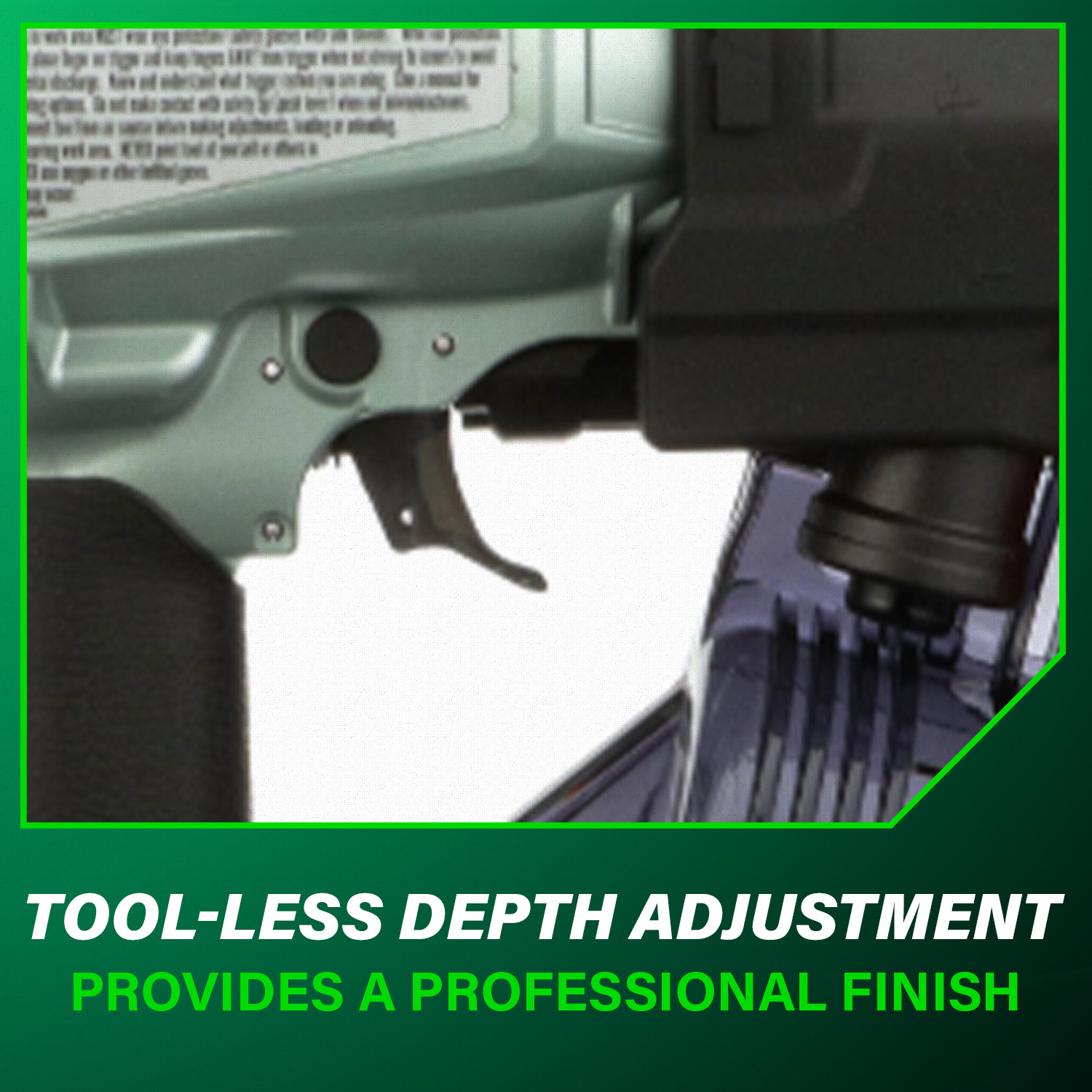

- TOOL-LESS DEPTH ADJUSTMENT: Depth adjustment to countersink or flush drive into a variety of materials
- NO MAR NOSE CAP: Protects material from accidental marks

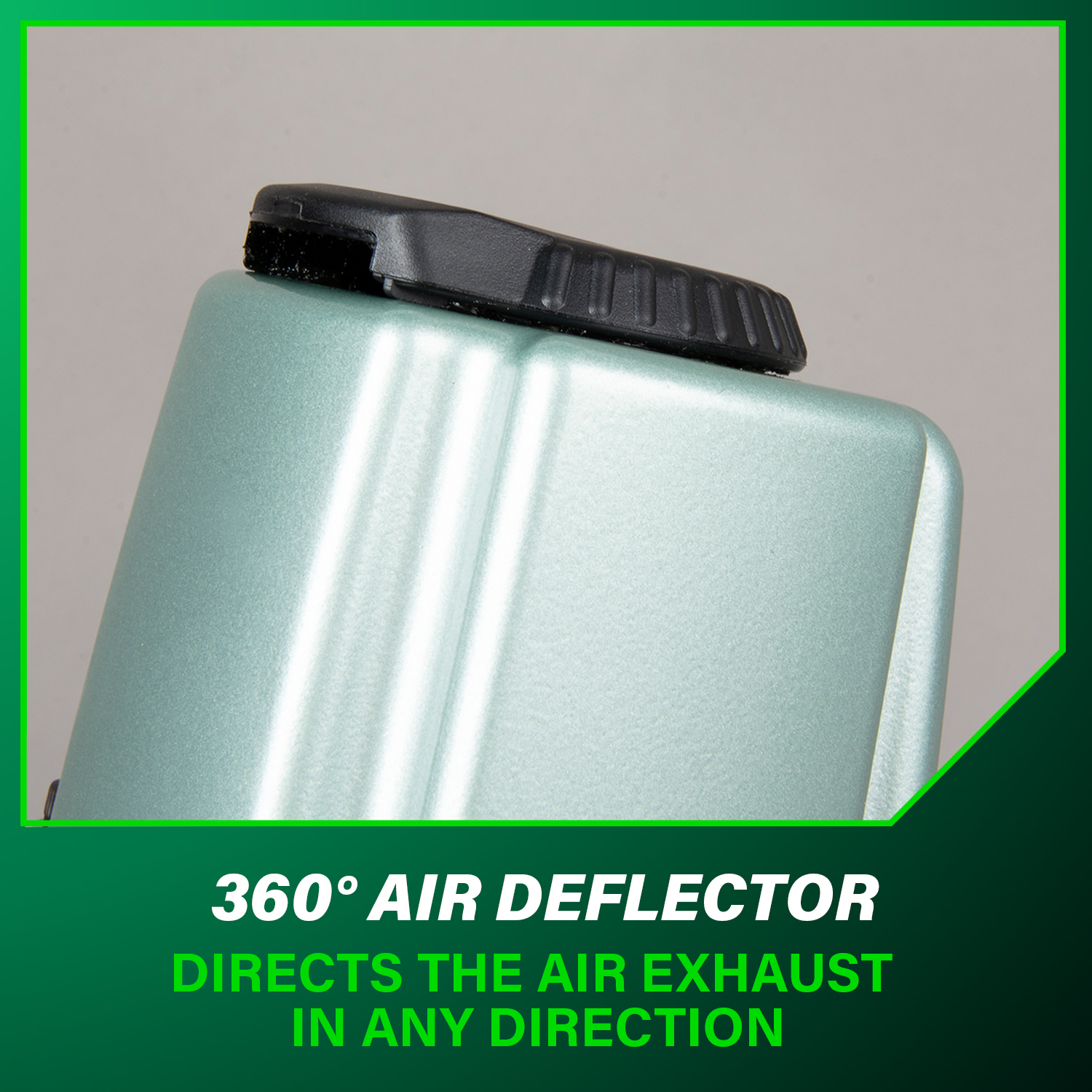

- AIR DEFLECTOR: Adjustable air deflector directs the air exhaust in any direction
- RECOMMENDED: Use Metabo HPT Nails for best results
- COMPLIANT: Safety standards for pneumatic nailers in the United States
- Download the NV75A5 Tool Card
- Aluminum Rafter Hook (889661M)
- No Mar Nose Cap (883106)
- Safety Glasses (875769)
Specifications
| Nail Length (Plastic Collated) | 1-3/4" - 2-1/4" |
| Nail Length (Wire Collated) | 1-3/4" - 3" |
| Nail Diameter (Wire Collated) |
.099" - .131" |
| Nail Diameter (Plastic Collated) | .090" - .099" |
| Actuation | Selective (Sequential/Contact) |
| Magazine Angle | 16-degree Wire - 15-degree Plastic |
| Magazine Loading | Side Load - Tilt Bottom |
| Nail Capacity | 200-300 |

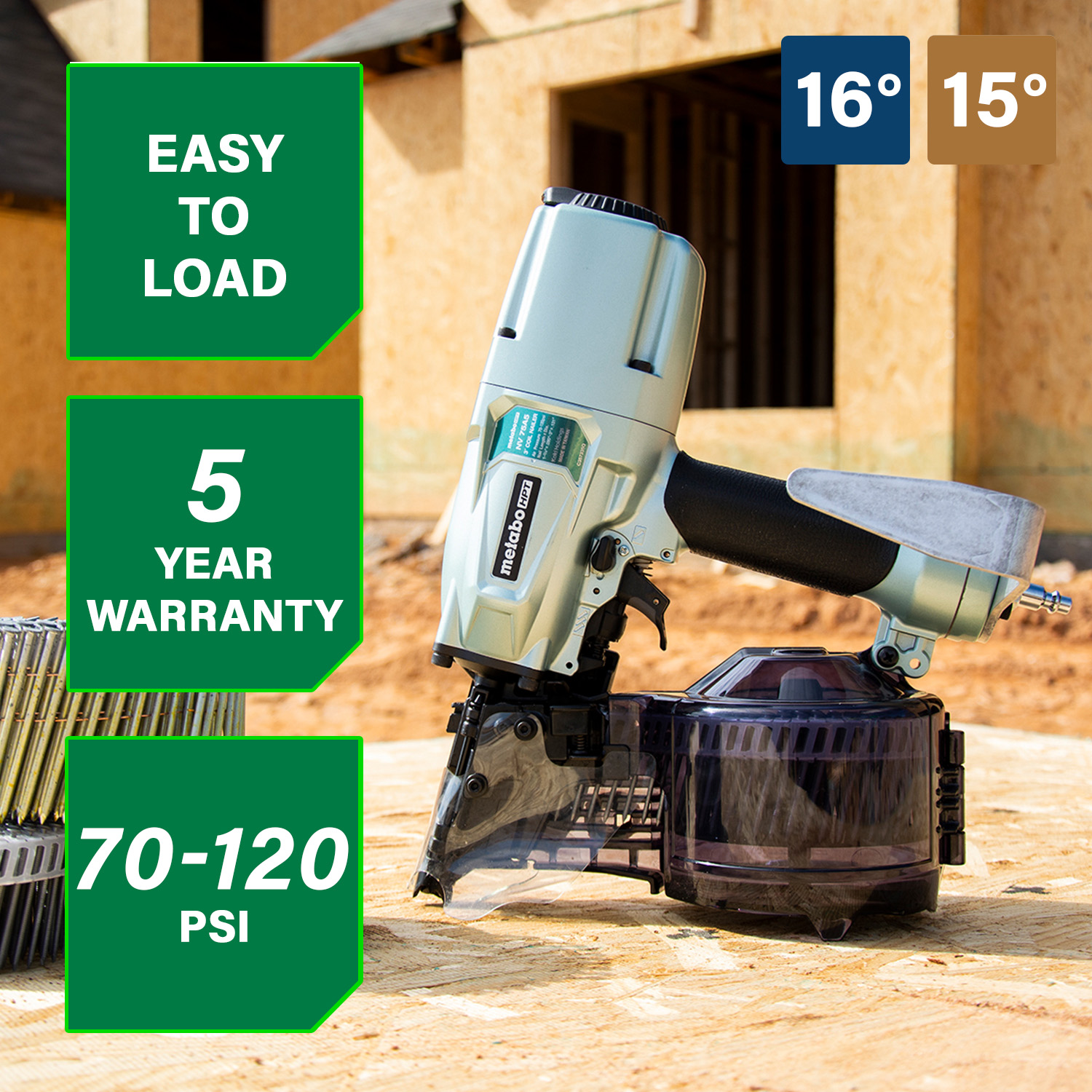

| Operating Pressure | 70-120 PSI |
| Dry-fire Lockout | No |
| Depth Adjustment | Tool-less |
| Adjustable Exhaust Port | Yes |
| Jam Clearing | Open Nose Design |
| Rubber Grip | Yes |
| Dimensions (LxWxH) | 10-11/16" x 5-3/16" x 13-3/8" |
| Weight | 5.7lbs |

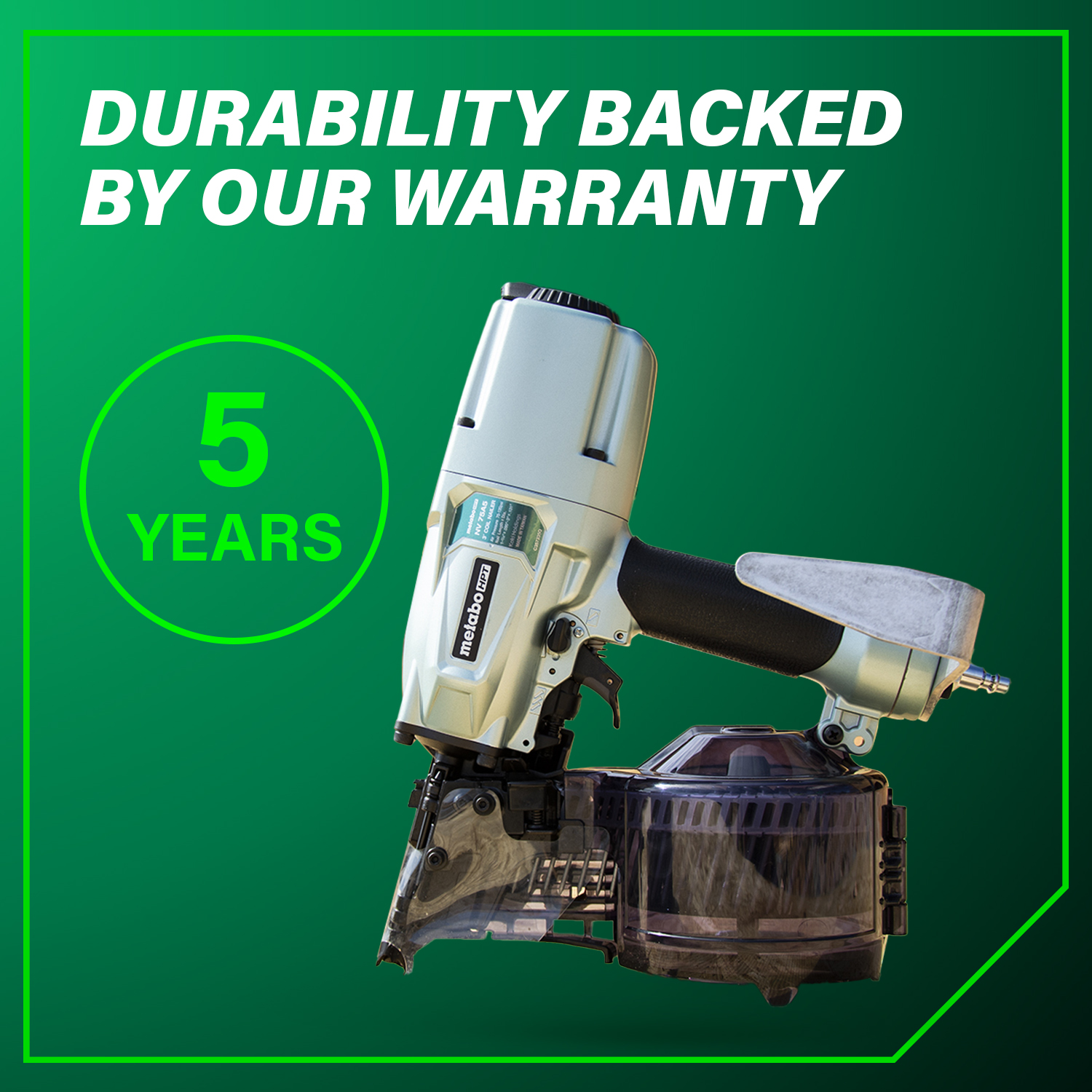

| Warranty | 5-Years |

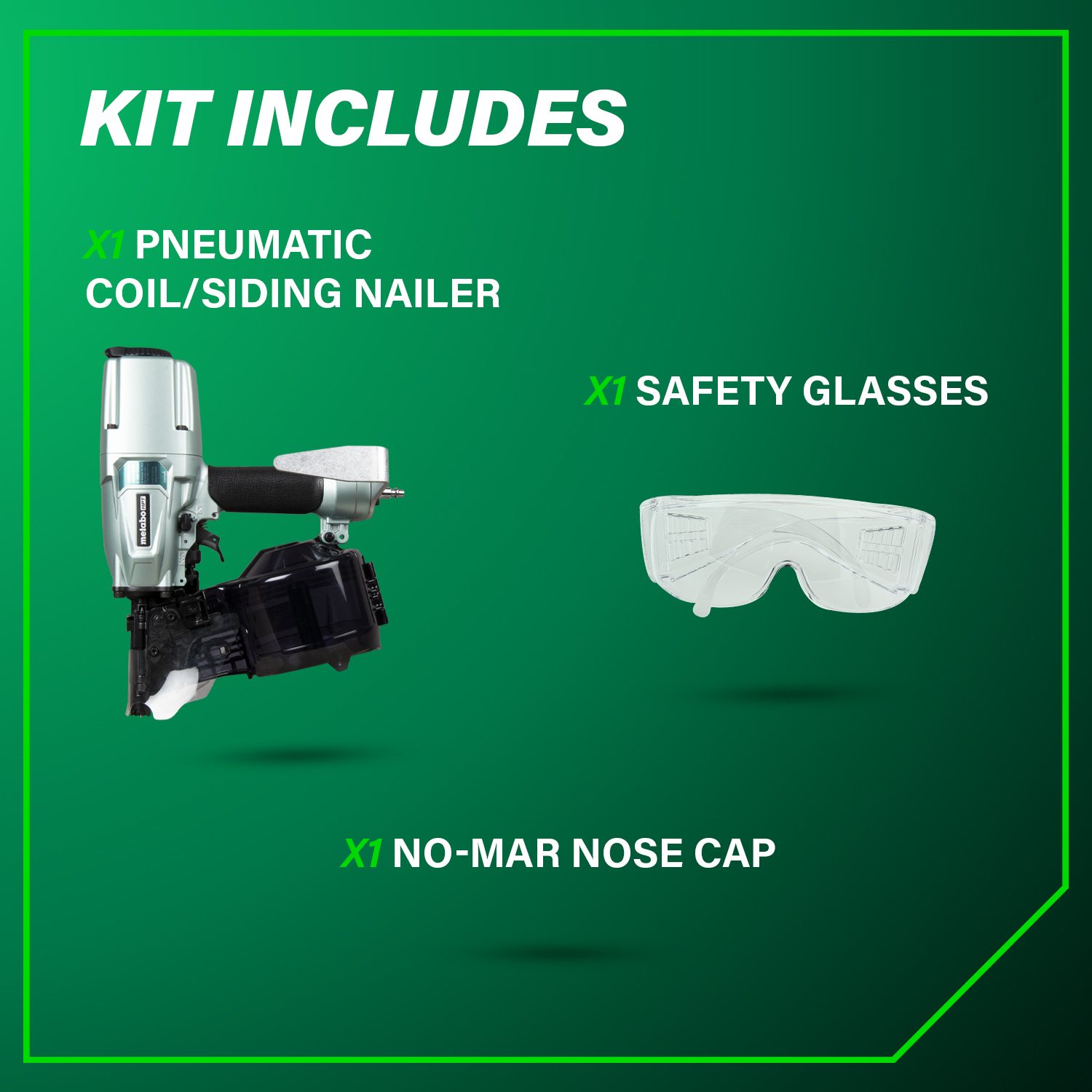

Includes
- Aluminum Rafter Hook (889661M)
- No Mar Nose Cap (883106)
- Safety Glasses (875769)
