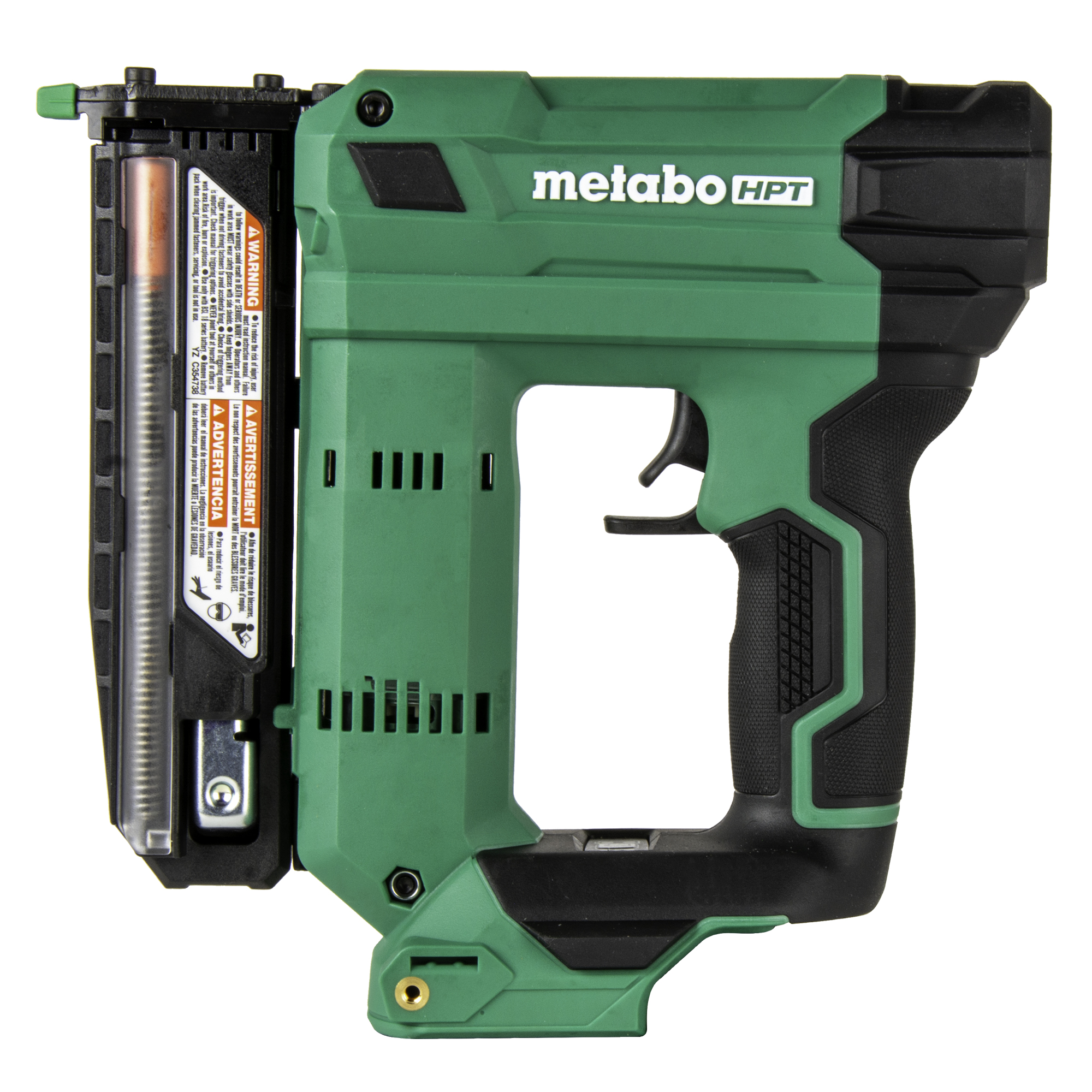

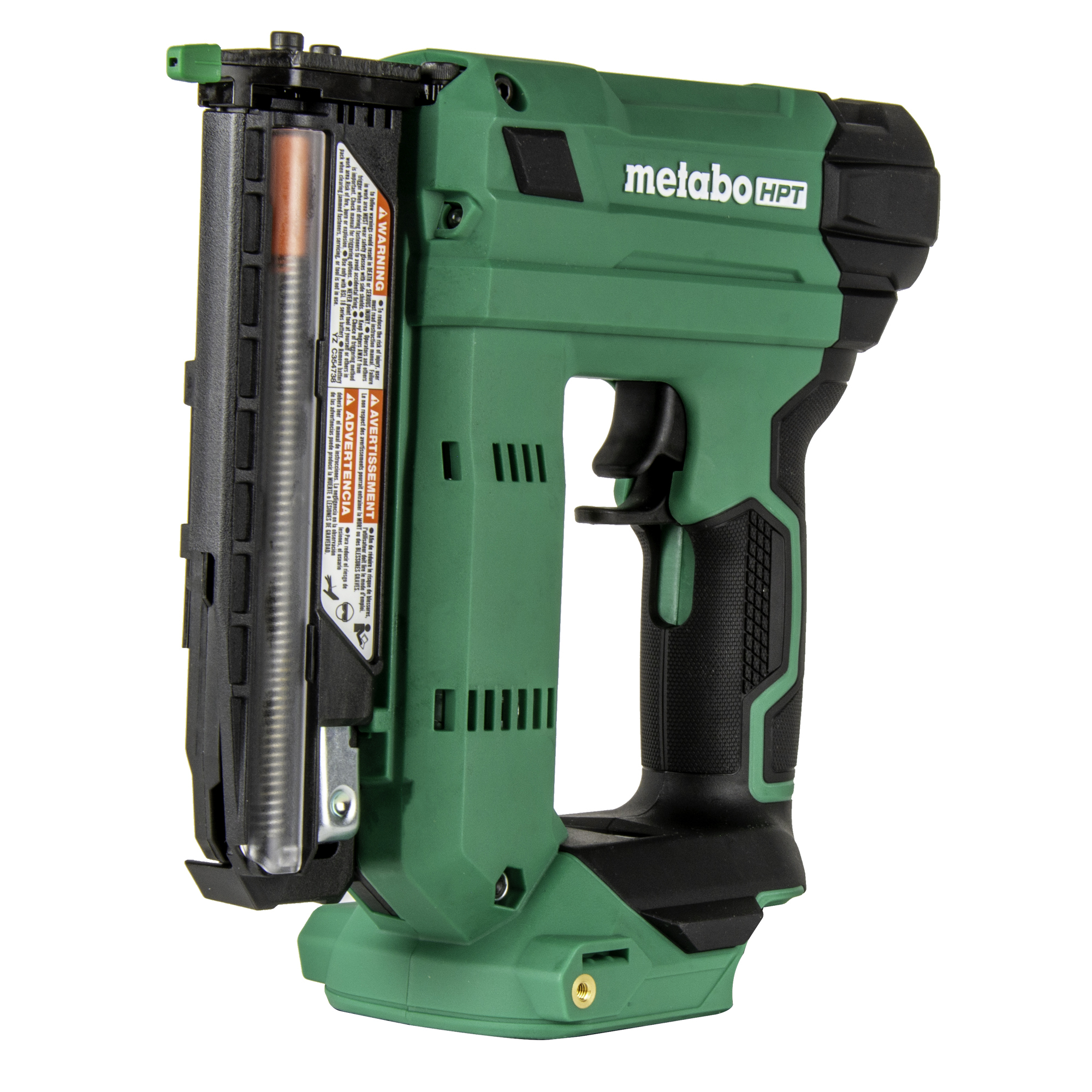

18V MultiVolt™ 23-Gauge Pin Nailer | Metabo HPT NP1835DAQ4
Model# NP1835DAQ4
- LONG LASTING: 2700 nails per charge using the compact 18V 2.0Ah Battery (sold separately)
- MECHANICAL SPRING DRIVE: Provides power to drive up to 1-3/8" 23-Ga headless pin nails
- PRECISION: Fine top nose design for nailing into the grooves of any trim
- DRY FIRE LOCKOUT: Prevents damage to workpiece and tool
- DOUBLE TRIGGER: Provides additional safety
- LONG LASTING: 2700 nails per charge using the compact 18V 2.0Ah Battery (sold separately)
- MECHANICAL SPRING DRIVE: Provides power to drive up to 1-3/8" 23-Ga headless pin nails
- PRECISION: Fine top nose design for nailing into the grooves of any trim
- DRY FIRE LOCKOUT: Prevents damage to workpiece and tool
- DOUBLE TRIGGER: Provides additional safety
Features
The Pro Preferred Brand of Pneumatic Nailers has launches the NP1835DA, an 18V Cordless 23-Gauge Pin Nailer. This tool allows users to drive up to 1-3/8" 23-Gauge headless pins without the hassle of hoses, providing enhanced mobility. It also incorporates Metabo HPT's innovative low-maintenance Mechanical Spring Drive System.
The NP1835DA is perfect for securing glued wood joints while they dry, holding moldings in place for adjustments prior to permanent fastening, and attaching decorative trim without leaving unsightly marks, or large holds to fill before painting. Its fixed nose makes nail placement easier than ever, and the double trigger ensures added safety during operation.
The 18V Cordless 23-Gauge Pin Nailer is part of the expanding MultiVolt System 18-Volt and 36-Volt power tools from Metabo HPT. Go lighter with 18V batteries or go longer with the unique MultiVolt battery that works on both 18V and 36V tools to double your runtime for up to 8.0Ah of runtime per charge for more power.
MAKE. MOVE. GO
- LONG LASTING: 2700 nails per charge using the compact 18V 2.0Ah Battery (sold separately)
- MECHANICAL SPRING DRIVE: Provides power to drive up to 1-3/8" 23-Ga headless pin nails
- PRECISION: Fine tip nose design for nailing into the grooves of any trim
- DRY FIRE LOCKOUT: Prevents damage to workpiece and tool
- DOUBLE TRIGGER: Provides additional safety
- BELT HOOK: Left or right mountable to preference and comfort
- FASTENERS: Accepts 5/8" , 3/4", 1", 1-3/16" and 1-3/8" 23-Gauge Pin Nails
- LED LIGHT: Bright LED illuminates the work area
- AWARD: Rated the Pro Preferred Nailer for 9 years running (2014-2022) by Builder and Developer Magazine
- COMFORT: Built-in counter weight reduces recoil
- PROTECTION: Rubber bumpers protect the tool and work surfaces from damage
- NO-PUSH SAFETY TIP: Reduces marring for a clean finish
- ACCEPTS: Go lighter with an 18V battery or go longer with 18V/36V MultiVolt battery for up to 8.0Ah of runtime
- APPLICATIONS: Ideal for cabinetry, paneling, small molding/trim, and craft work
- RECOMMENDED: Use Metabo HPT 23-Gauge Pin Nails for best results
- WARRANTY: Covered by Metabo HPT's 5-year warranty
18V Li-Ion Compact 1.5Ah Battery (BSL1815X) | |
18V Li-Ion Compact 2.0Ah Battery with fuel gauge (BSL1820) | |
18V Li-Ion Compact 3.0Ah Battery (BSL1830C) | |
18V Li-Ion Compact 4.0Ah Battery with fuel gauge | |
| 18V/36V 5.0Ah/2.5Ah MultiVolt Water & Impact Resistant Battery (BSL36A18X) | 380083M |
18V/36V MultiVolt Li-Ion 5.0Ah/2.5Ah Battery (BSL36A18) | |
18V/36V MultiVolt Li-Ion 8.0Ah/4.0Ah Battery (BSL36B18) | |
(2) 18V Lithium Ion 2.0Ah Batteries w/ Fuel Gauges / Charger Kit | |
(2) 18V Li-Ion Compact 3.0Ah Batteries & Charger Starter Kit | |
(1) 18V/36V MultiVolt Li-Ion 8.0Ah/4.0Ah Battery & Charger Starter Kit |
Specifications
| Volts | 18V |
| Battery Type | Li-Ion |
| Nail Length | 5/8" - 1-3/8" |
| Magazine Capacity | 100 |
| Nails per Charge (w/ 2.0Ah Battery) | 2700 |
| Magazine Angle | 0° |
| Magazine Loading | Side |
| Dryfire Lockout | Equipped |
| Battery Charge Indicator | On Battery |
| LED Light | On Tool |
| Belt Hook | Equipped |
| Dimensions | 9-5/8" (L) x 8-15/16" (H) x 3-7/16" (W) |
| Weight (w/out battery) | 3.6 lbs |
| Warranty | 5 Years |
