1-3/4 Inch Coil Roofing Nailer | Metabo HPT NV45AB2
Model# NV45AB2
- APPLICATIONS: Ideal Coil Roofing Nailer for installation of asphalt roofing shingles and insulation boards

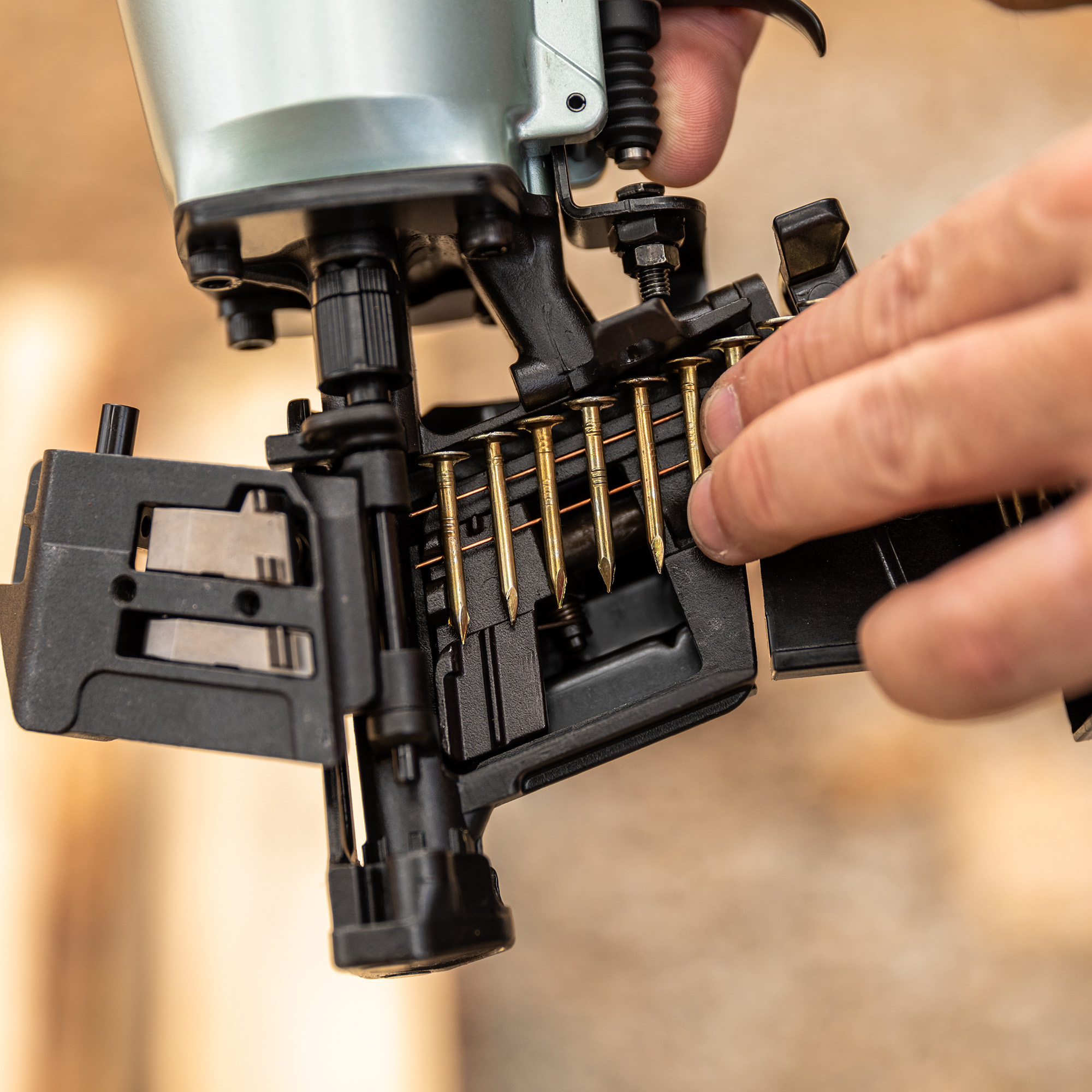

- EASY FASTENER INSTALLATION: Side loading magazine, convenient and easy for quick replenishment
- DEPTH ADJUSTMENT: Tool-less depth of drive adjustment, for precision nailing/flush driving
- APPLICATIONS: Ideal Coil Roofing Nailer for installation of asphalt roofing shingles and insulation boards
- EASY FASTENER INSTALLATION: Side loading magazine, convenient and easy for quick replenishment
- DEPTH ADJUSTMENT: Tool-less depth of drive adjustment, for precision nailing/flush driving
Features
Pro Preferred Nailers
Product Brand Surveys in Builder & Developer Magazine for 9 years running (2014 - 2022)
APPLICATION
Great for installation of asphalt roofing shingles and insulation boards
Tool-Less Depth of Drive Adjustment
Quick and easy adjustment for precision nailing/flush driving
ACCEPTS
Accepts 16º wire coil nails from 7/8" to 1-3/4"

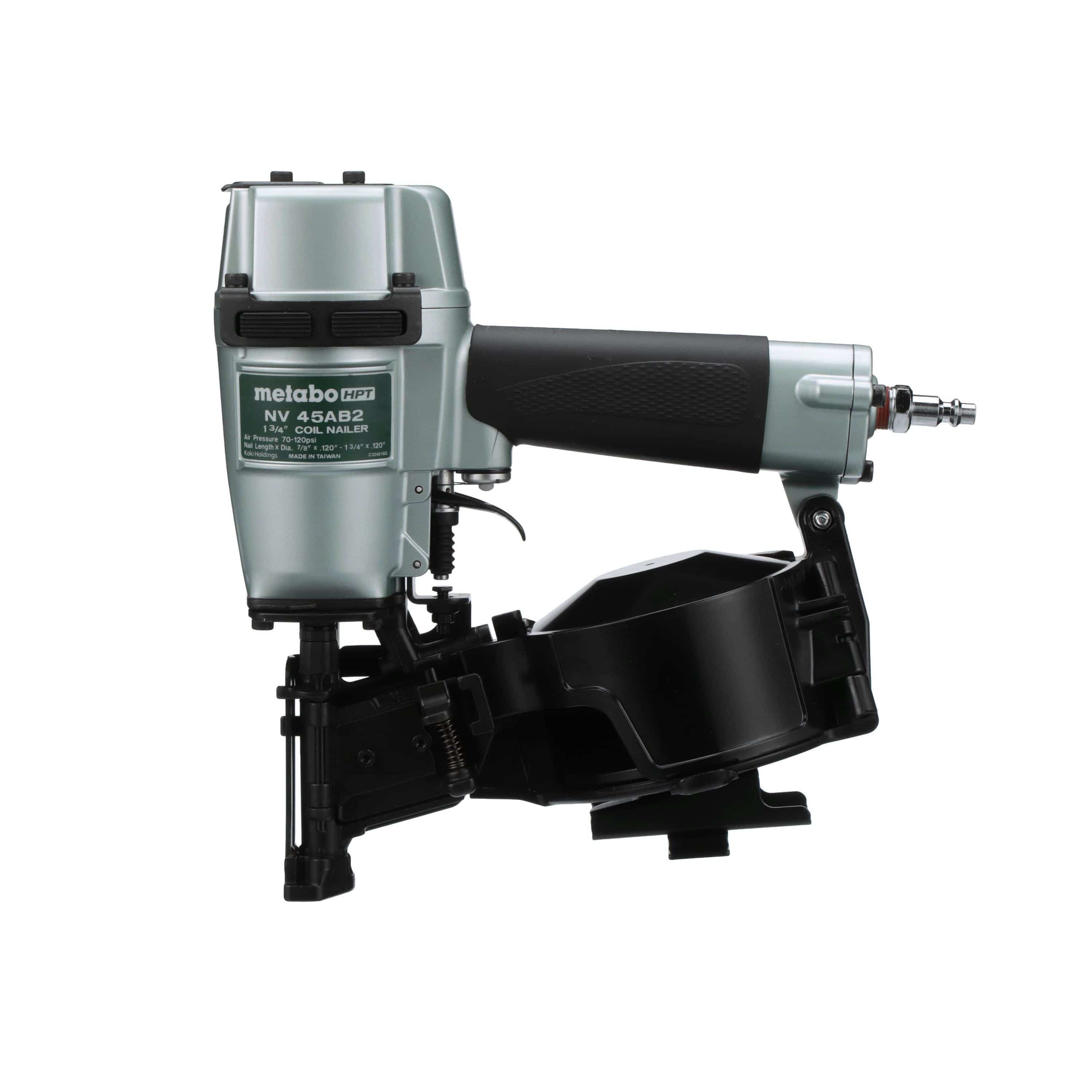

One of the best selling Coil Roofing Nailer (NV45AB2), it is extremely lightweight, (only 5.5 Lb.) making it the essential tool for the fast-pace working environment. It features rapid driving and unprecedented quick response with unique cylinder valve firing mechanism allowing you to fire up to 3 Nails per second.
The Coil Roofing Nailer will fire all standard Roofing Nails ranging in size from 7/8 In. to 1-3/4 In. Its depth of drive adjustment will allow the user to drive the nail to the desired depth at operating pressure ranging from 70 to 120 psi.
Features of the Coil Roofing Nailer
- AWARD: Rated the Pro Preferred Nailer for 11 years running (2014 - 2024) by Builder and Developer Magazine
- APPLICATIONS: The ideal Coil Roofing Nailer for installation of asphalt roofing shingles and insulation boards
- EASY FASTENER INSTALLATION: Side loading magazine, convenient and easy for quick replenishment
- DEPTH ADJUSTMENT: Tool-less depth of drive adjustment, for precision nailing/flush driving
- LIGHTWEIGHT: At only 5.5 Lb., the NV45AB2 is lightweight and well balanced for easy maneuverability
- CARBIDE TIPPED PUSH LEVER: Reduces wear
- RUBBER PADS: Help keep nailer from sliding off roof when not in use

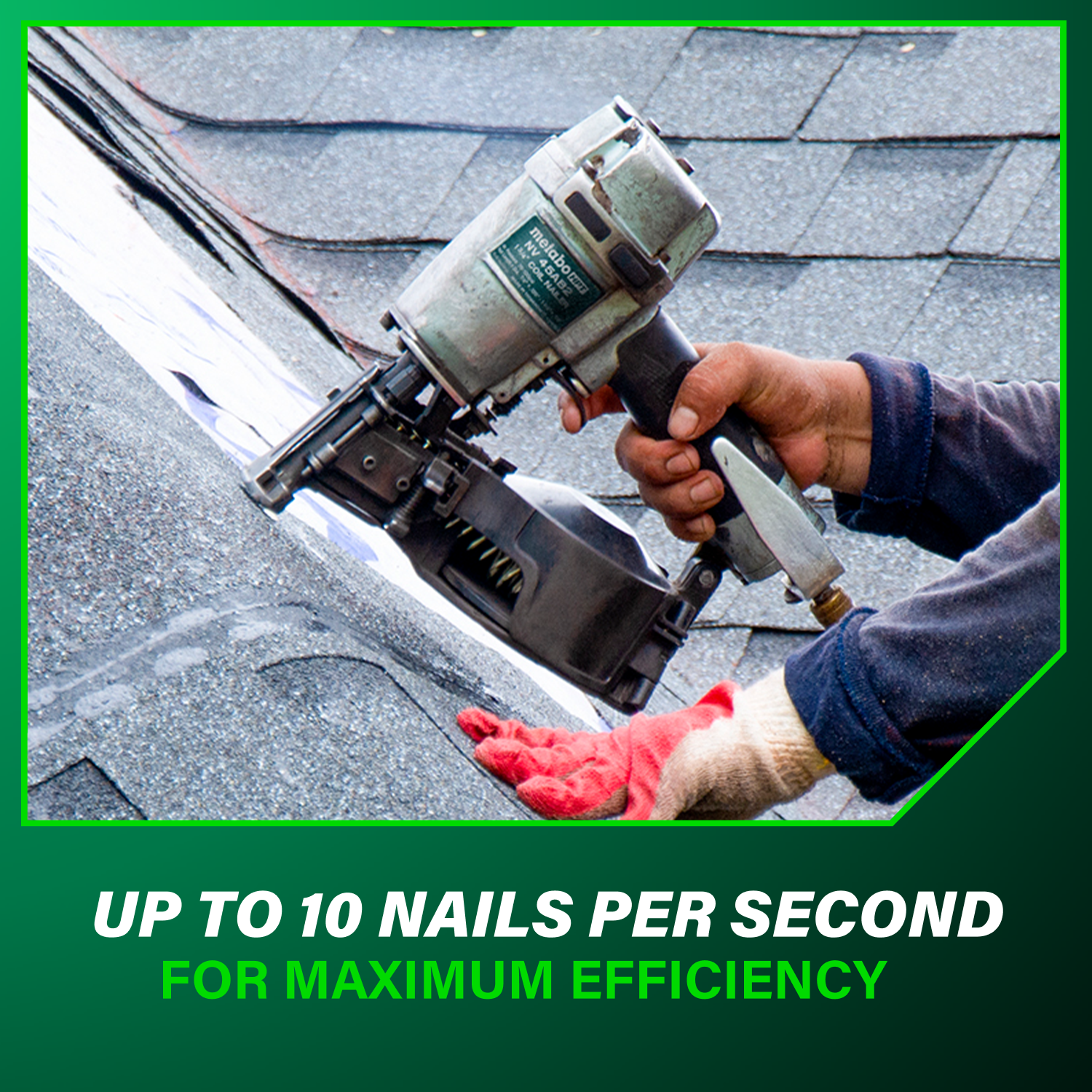

- SPEED: Quick driving system, for maximum efficiency
- DURABLE: Pneumatic power feed and return, allows tool to operate in the harshest conditions
- RECOMMENDED: Use Metabo HPT Nails for best results
- WARRANTY: Covered by Metabo HPT's Professional 5-Year Tool Warranty
- TOOL CARD: Download the NV45AB2 Tool Card
Included with the Coil Roofing Nailer
- Safety Glasses
- Magazine Shingle Guide Assembly
Optional Accessories for the Coil Roofing Nailer:
- Sequential Trip Mechanism (878226)
- Power Pack Set (877908)
Specifications
| Fastener Diameter Range | 0.120 | ||||
| Magazine Capacity | 120 | ||||
| Magazine Loading | Side | ||||
| Air Inlet | 3/8" | ||||
| Operating Pressure | 70-120 PSI | ||||
| Jam Clearing | Open-nose | ||||
| Depth Setting | Tool-Less | ||||
| Actuation | Contact, Sequential Optional | ||||
| L x W x H | 9-27/32" x 4-5/8" x 10-3/8" | ||||
| Tool Weight | 5.5 lbs | ||||
| Fastener Type | Coil, Wire Collation Roofing Nails | ||||
| Magazine Angle | 16-Degrees | ||||
| Fastener Length Capacity | 7/8" to 1-3/4" |
Includes
- NV45AB2 Roofing Nailer
- Safety Glasses (875769)
- Magazine Shingle Guide Assembly (883370)
