10 Inch Table Saw with Fold and Roll Stand | Metabo HPT C10RJS

Model# C10RJ(S)

  • BEST IN CLASS RIP CAPACITY: 35" to the right x 22" to the left
  • OVERSIZED TABLE: 28 3/4" x 22" for easy and safer material support
  • PRO LEVEL MOTOR: Cooper wound, soft start, electric brake, overload protection, 15 amp, 4,500 RPM
  • DURABLE FOLD AND ROLL STAND: For easy setup and breakdown with an adjustable foot for stabilization on uneven surfaces
  • WARRANTY: Covered by Metabo HPT's two-year warranty

Features

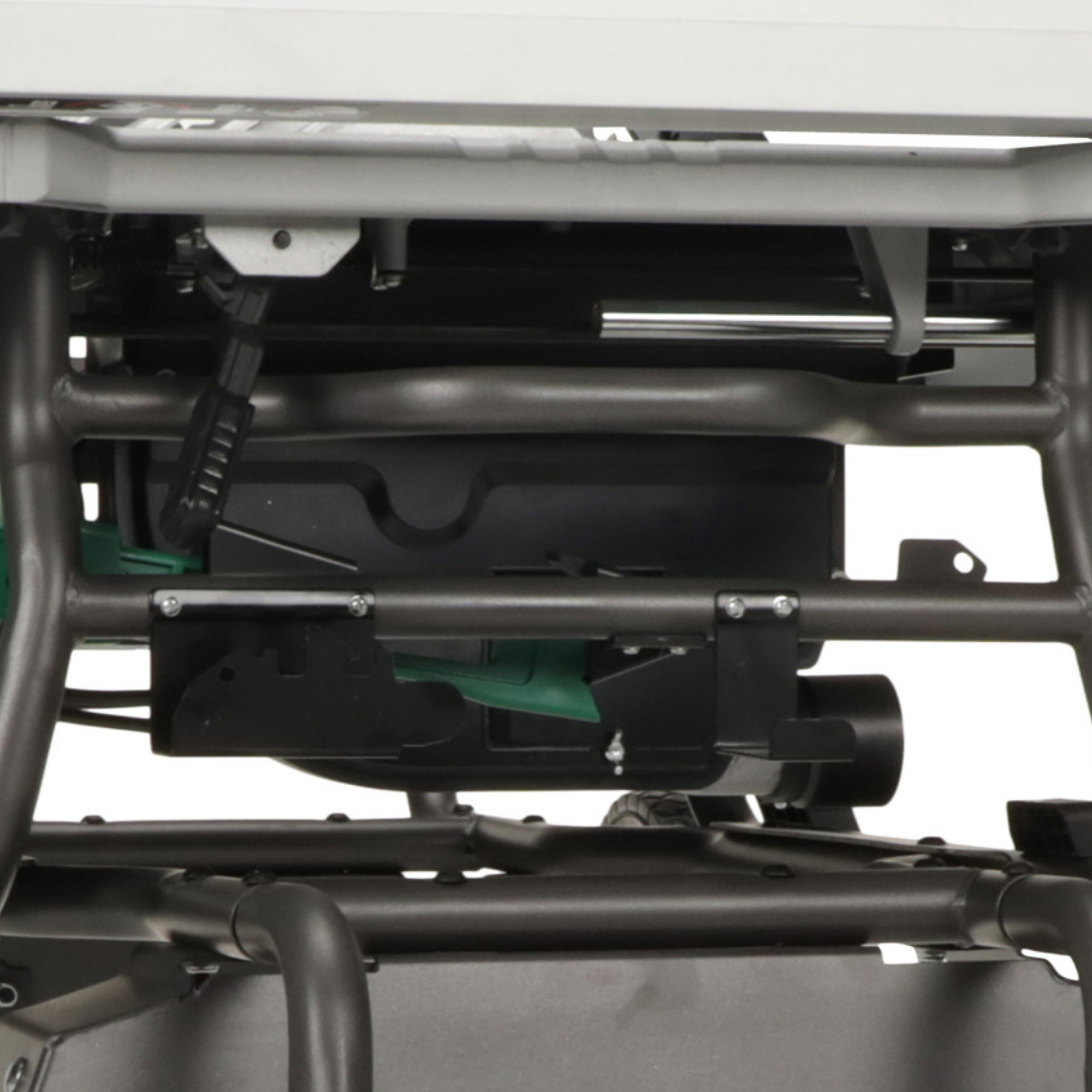

MOTOR

Powerful 15 Amp motor with 4,500 RPM for tackling the toughest cutting applications

TABLE SIZE

28-3/4 In. x 22 In. working table size with outfeed support of 28-3/4 In. x 2 In. for easy and stable material support

BLADE ADJUSTMENTS

Blade height or angle conveniently located on the front

STAND

Stable and durable fold and roll stand for easy set up and breakdown, providing stability while in use

The 10 Inch Job site Table Saw (C10RJ(S)) features a 15-Amp motor with 4,500 RPMs, and is engineered for rip-sawing and cross-cutting of ordinary wood, hardwood, plywood and composite wood materials. The fold & roll stand is designed with sturdy legs for easy set up and breakdown, providing stability to the table saw while in use. The stand also incorporates wheels to ensure the user can maneuver through tough terrain with ease.

The C10RJ(S) table saw features soft start, an electric brake and a large working table size with telescoping table extension that can support a max rip capacity of 35" to the right. Capable of a 3-1/8" cut at 90 degrees and 2-1/4" cut at 45 degrees, this user-friendly table saw is an ideal choice for any workshop or jobsite.


Features of the 10" Table Saw
  • BEST IN CLASS RIP CAPACITY: 35" to the right x 22" to the left
  • OVERSIZED TABLE: 28 3/4" x 22" for easy and safer material support
  • PRO LEVEL MOTOR: Cooper wound, soft start, electric brake, overload protection, 15 amp, 4,500 RPM
  • DURABLE FOLD AND ROLL STAND: For easy setup and breakdown with an adjustable foot for stabilization on uneven surfaces
  • METAL MITER GAUGE: For precise miter cuts
  • RACK AND PINION FENCE ADJUSTMENT: For micro adjustments
  • CUT CAPACITY: Capable of a 3-1/8 In. cut at 90 degrees and 2-1/4 In. cut at 45 degrees
  • BEVEL: 0° to 45°: for cuts ranging from 3-1/8 In. (0°) to 2-1/4 In. (45°)
  • EASY ADJUSTMENTS: Blade height or angle, as well as simple fence adjustments to adhere to the cutting material
  • BLADE: 10 In. 40T carbide tipped blade: offers high cutting capacity
  • UPRIGHT DIMENSIONS: 19" x 20" x 28" for easy storage
  • COMPLIANT: New UL regulations
  • WARRANTY: Covered by Metabo HPT's two-year warranty
  • TOOL CARD: Download the C10RJ(S) Tool Card



Included with the 10"Table Saw

  • 10" 40-Tooth Carbide Tipped Blade (371495)
  • Blade Guard Assembly (371647)
  • Anti-kickback Pawl Assembly (371648)
  • Miter Gauge Assembly (371651)
  • Push Stick (371532)
  • Rip Fence Assembly (371649)
  • Outfeed Support Assembly (371650)
  • (2) Blade Wrenches (371633)
  • 5mm Hex Bar Wrench (371644)
  • 4mm Hex Bar Wrench (371645)
  • 2.5mm Hex Bar Wrench (371646)

Specifications

Blade Size

10"

Motor

15 Amp

No-Load Speed

4,500 RPM

Blade Type Included

40T Carbide Tipped

Table Material

Aluminum

Working Table Size

28-3/4" x 22"

Outfeed Support Size

28-3/4" x 2"

Max Rip Capacity Right

35"

Max Rip Capacity Left

22"

Max Cut Depth @ 0 Degrees

3-1/8"

Max Cut Depth @ 45 Degrees

2-1/4"

Max Width of Dado

8 x 13/16"

Soft Start

Yes

Electric Brake

Yes

Dust Port Size

2-1/2"

Fold & Roll Stand

Included

Tool Weight (Assembled)

100 lbs

Upright Dimensions

19" x 20" x 28"

Warranty

2-Year












Includes

  • 10" 40-Tooth Carbide Tipped Table Saw Blade  (371495)
  • Blade Guard Assembly  (371647)
  • Anti-kickback Pawl Assembly  (371648)
  • Miter Gauge Assembly  (371651)
  • Push Stick  (371532)
  • Rip Fence Assembly  (371649)
  • Outfeed Support Assembly  (371650)
  • (2) Blade Wrenches  (371633)
  • 5mm Hex Bar Wrench  (371644)
  • 4mm Hex Bar Wrench  (371645)
  • 2.5mm Hex Bar Wrench  (371646)
