18V MultiVolt™ Cordless 21 Degree 3-1/2" Plastic Strip Framing Nailer (1x4.0Ah) | Metabo HPT NR1890DRST

Model# NR1890DRST

  • SAME TOOL, BETTER BATTERY: Now with the 4.0Ah 18V battery that features a fuel gauge for convenience
  • FASTENERS: Accepts round head 21° plastic strip collated nails from 2" up to 3-1/2" in length and  0.113" to 0.131" in diameter
  • GO FASTER: Up to 2 nails per second and 600 nails per charge with the included 18V 4.0Ah battery
  • WARRANTY: Covered by Metabo HPT's Lifetime Lithium Ion Tool Warranty and two-year Lithium Ion battery warranty

Features

SAME TOOL, BETTER BATTERY

Now with the 4.0Ah 18V battery that features a fuel gauge for convenience

GO FASTER

Up to 2 nails per second and 600 nails per charge with the included 18V 4.0Ah battery

FASTENERS

Accepts round head 21 degree plastic strip collated nails from 2" up to 3-1/2" in length and 0.113" to 0.131" in diameter

WARRANTY

Covered by Metabo HPT's Lifetime Lithium Ion Tool Warranty and two-year lithium Ion battery warranty

The Pro Preferred Brand of Pneumatic Nailers introduces the 18V MultiVolt Cordless 21° 3-1/2" Plastic Strip Framing Nailer - model NR1890DRST that has completely raised the bar for cordless framing nailers. No longer will you have to worry about hoses, compressors, gas cartridges, or having to wait for your tool to ramp up. Metabo HPT is proud to build upon its strong pneumatic heritage and offer a professional cordless framing option. Equipped with Metabo HPT's unique low maintenance Air Spring Drive System, this cordless nailer delivers more than enough power to flush drive up to a 3-1/2" x 0.131" round head nail into the toughest materials, with the same feeling as a pneumatic nailer.

Metabo HPT's unique Air Spring Drive System uses sealed, compressed air to drive each nail which means zero ramp up time and driving speeds of up to 2 nails per second. Powered by Metabo HPT's lightweight 18V 4.0Ah battery with fuel gauge, this nailer is a sure thing to get the job done efficiently, completely, and comfortably.

The NR1890DRST 18V Cordless Plastic Strip Framing Nailer is a part of the expanding MultiVolt System of 18-Volt and 36-Volt power tools from Metabo HPT. GO lighter with 18V batteries or GO longer with the unique MultiVolt battery that works on both 18V and 36V tools to double your runtime for up to 8.0Ah of runtime per charge for more power on the GO.


Features of the 18V MultiVolt Cordless 21° 3-1/2" Plastic Strip Framing Nailer
  • SAME TOOL, BETTER BATTERY: Now with the 4.0Ah 18V battery that features a fuel gauge for convenience
  • AWARD: Rated the Pro Preferred Nailer for 9 years running (2014 - 2022) by Builder and Developer Magazine
  • CORDLESS FREEDOM: Performance similar to pneumatic tool but with cordless freedom
  • FASTENERS: Accepts round head 21° plastic strip collated nails from 2" up to 3-1/2" in length and  0.113" to 0.131" in diameter
  • GO FASTER: Up to 2 nails per second with no ramp-up time
  • LONG LASTING: 600 Nails per charge using the included compact 18V 4.0Ah battery
  • APPLICATIONS: Ideal for all construction framing applications - particularly useful for punch-out work on a jobsite without the need for a compressor or hose
  • EASY ADJUSTMENT: Tool-less depth of drive and selective actuation (bump or contact drive)
  • ZERO RAMP UP: No refilling of the air tank required, resulting in faster action
  • LOW MAINTENANCE AIR SPRING DRIVE SYSTEM: Delivers similar performance as a pneumatic tool
  • BRUSHLESS MOTOR TECHNOLOGY: Experience longer run time per charge, less maintenance and increased durability
  • HIGH OUTPUT ENERGY: To drive into engineered lumber
  • DRY-FIRE LOCKOUT: Assures nail placement and prevents damage to work surfaces
  • SIDE LOCK SWITCH: Prevents accidental firing
  • CONVENIENCE: Integrated belt hook
  • RECOMMENDED: Use Metabo HPT Framing Nails for best results
  • WARRANTY: Covered by Metabo HPT's Lifetime Lithium Ion Tool Warranty and two-year Lithium Ion battery warranty
  • TOOL CARD: Download the NT1890DRST Tool Card

 Included with the 18V 21° Framing Nailer

  • 18V 4.0Ah Battery w/ Fuel Gauge (BSL1840M - 378681M
  • 18V Lithium Ion Charger (UC18YFSL
  • 3mm Hex Wrench (943277)
  • 4mm Hex Wrench (944458)
  • Carrying Bag (372294)
  • Safety Glasses (875769)
Optional Accessories for the 18V 21° Framing Nailer (sold separately)

18V Li-Ion Compact 1.5Ah Battery (BSL1815X)

333353M

18V Li-Ion Compact 2.0Ah Battery with fuel gauge (BSL1820)

377797M

18V Li-Ion Compact 3.0Ah Battery (BSL1830C)

339782M

18V Li-Ion Compact 4.0Ah Battery with fuel gauge (BSL1840C)

378681M

18V/36V MultiVolt Li-Ion 5.0Ah/2.5Ah Battery (BSL36A18)

371751M

18V/36V MultiVolt Li-Ion 8.0Ah/4.0Ah Battery (BSL36B18)

372121M

(2) 18V Lithium Ion 2.0Ah Batteries w/ Fuel Gauges / Charger Kit

UC18YKSLS

(2) 18V Li-Ion Compact 3.0Ah Batteries & Charger Starter Kit

UC18YSL3S

(1) 18V/36V MultiVolt Li-Ion 8.0Ah/4.0Ah Battery & Charger Starter  Kit

UC18YSL3B1

Specifications

18V MultiVolt™  Brushless 3-1/2" Plastic Strip Framing Nailer

NR1890DRST

Volts

(V)

18

Battery Type

Li-Ion

Fastener Head Type

Round Head

Driving Speed

(Nails/Sec)

2

Magazine Capacity

(brads)

37

Magazine Angle

(deg)

21

Nail Length

(in)

2 - 3-1/2

Nail Diameter

(in)

.113 - .131

Nails per Charge (w/ 4.0Ah Battery)

600

Depth of Drive Adjustment

Tool-Less

Firing Mode

Sequential or Bump

Dry-Fire Lockout

Equipped

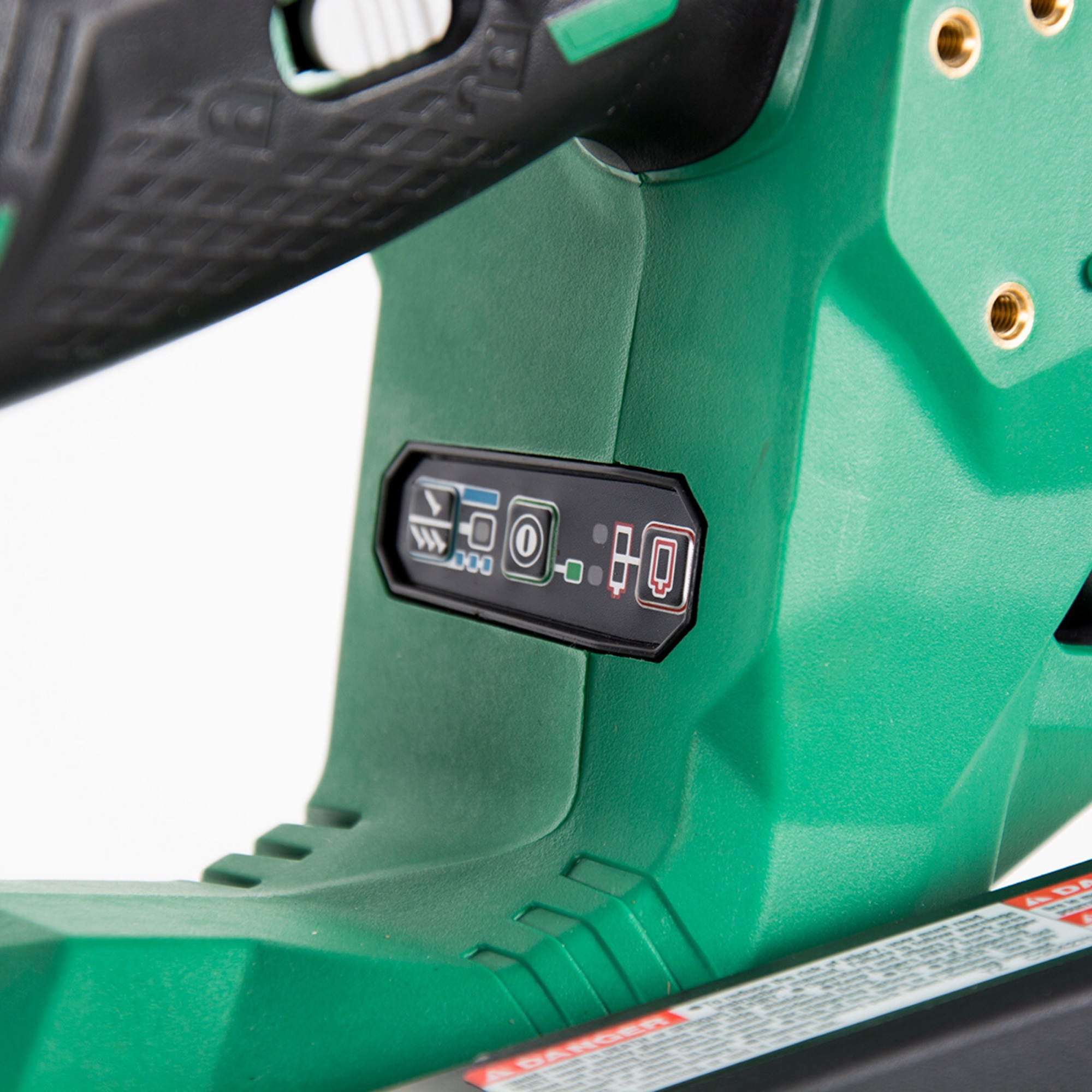

Battery Charge Indicator

On Tool/On Battery

Rafter Hook

Equipped

Belt Hook

Equipped

Dimensions

 13-1/2" x 13-1/2" x 5-3/8"

Weight (w/out battery)

(lbs)

9.2

























Includes

  • 18V 4.0Ah Battery w/ Fuel Gauge (BSL1840M - 378681M)
  • 18V Lithium Ion Charger (UC18YFSL)
  • 3mm Hex Wrench (943277)
  • 4mm Hex Wrench (944458)
  • Carrying Bag (372294M)
  • Safety Glasses (875769)
  • Pivoting Rafter Hook


Optional Accessories for the
18V 21° Framing Nailer (sold separately)

18V Li-Ion Compact 1.5Ah Battery (BSL1815X)

333353M

18V Li-Ion Compact 2.0Ah Battery with fuel gauge (BSL1820)

377797M

18V Li-Ion Compact 3.0Ah Battery (BSL1830C)

339782M

18V Li-Ion Compact 4.0Ah Battery with fuel gauge (BSL1840C)

378681M

18V/36V MultiVolt Li-Ion 5.0Ah/2.5Ah Battery (BSL36A18)

371751M

18V/36V MultiVolt Li-Ion 8.0Ah/4.0Ah Battery (BSL36B18)

372121M

(2) 18V Lithium Ion 2.0Ah Batteries w/ Fuel Gauges / Charger Kit

UC18YKSLS

(2) 18V Li-Ion Compact 3.0Ah Batteries & Charger Starter Kit

UC18YSL3S

(1) 18V/36V MultiVolt Li-Ion 8.0Ah/4.0Ah Battery & Charger Starter  Kit

UC18YSL3B1
