5" 15 Amps MFE 40 Wall Chaser (Concrete) | Metabo HPT 646040620
Model# 646040620
- IDEAL FOR: Electrical installation, wiring cables and empty pipes under plaster with cutting depths up to 3/8 - 1 9/16 "(40 mm)
- MAXIMUM PRODUCTIVITY: Due to a powerful motor, constant speed, and two-stage high-power drive
- DIE-CAST ALUMINUM: Cover with rubber rollers and optimum grip arrangement for comfortable machine guidance
- SLIDING CUT: For optimal view of the marking line
- IDEAL FOR: Electrical installation, wiring cables and empty pipes under plaster with cutting depths up to 3/8 - 1 9/16 "(40 mm)
- MAXIMUM PRODUCTIVITY: Due to a powerful motor, constant speed, and two-stage high-power drive
- DIE-CAST ALUMINUM: Cover with rubber rollers and optimum grip arrangement for comfortable machine guidance
- SLIDING CUT: For optimal view of the marking line
Features

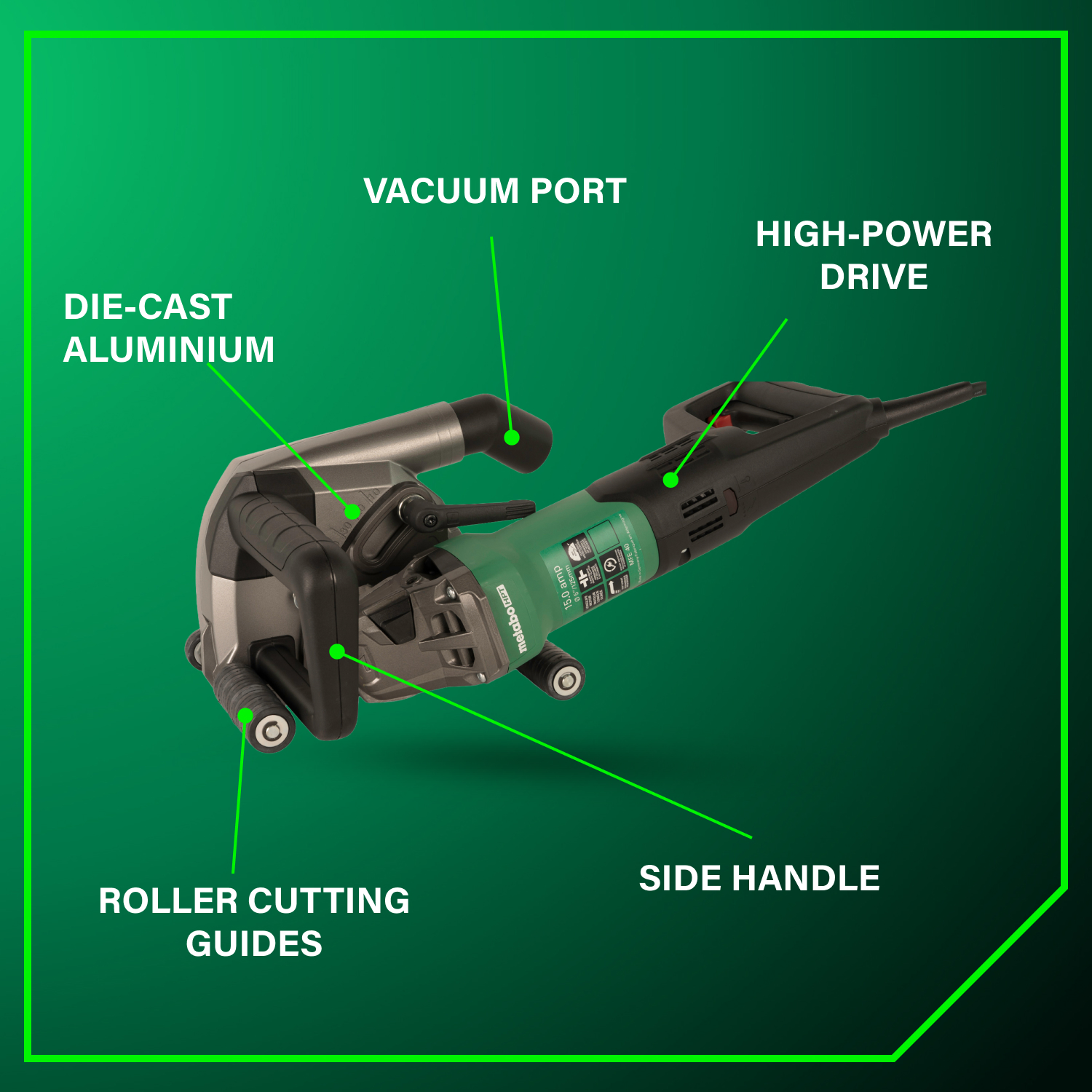

The Metabo HPT Wall Chaser, MFE 40 (646040620) is a 5”, 15 Amp, variable-depth grinding tool is made in Germany. This professional-grade tool was made to route channels for installing electrical wiring, cables, and empty pipes in plaster, concrete, and masonry up to 3/8”–1 9/16” (40 mm) deep. It features a powerful LongLife motor with dust protection and a two-stage high-power drive system that maintains constant speed through Metabo HPT’s Tacho-Constamatic full-wave electronics, delivering up to 5,000 RPM no-load and 4,400 RPM when under load. The MFE 40 connects easily to a Metabo HPT vacuum for low-dust operation. The tool comes with two diamond cutting discs, spacer rings, a chase extraction chisel, a wrench, and a durable plastic carrying case.

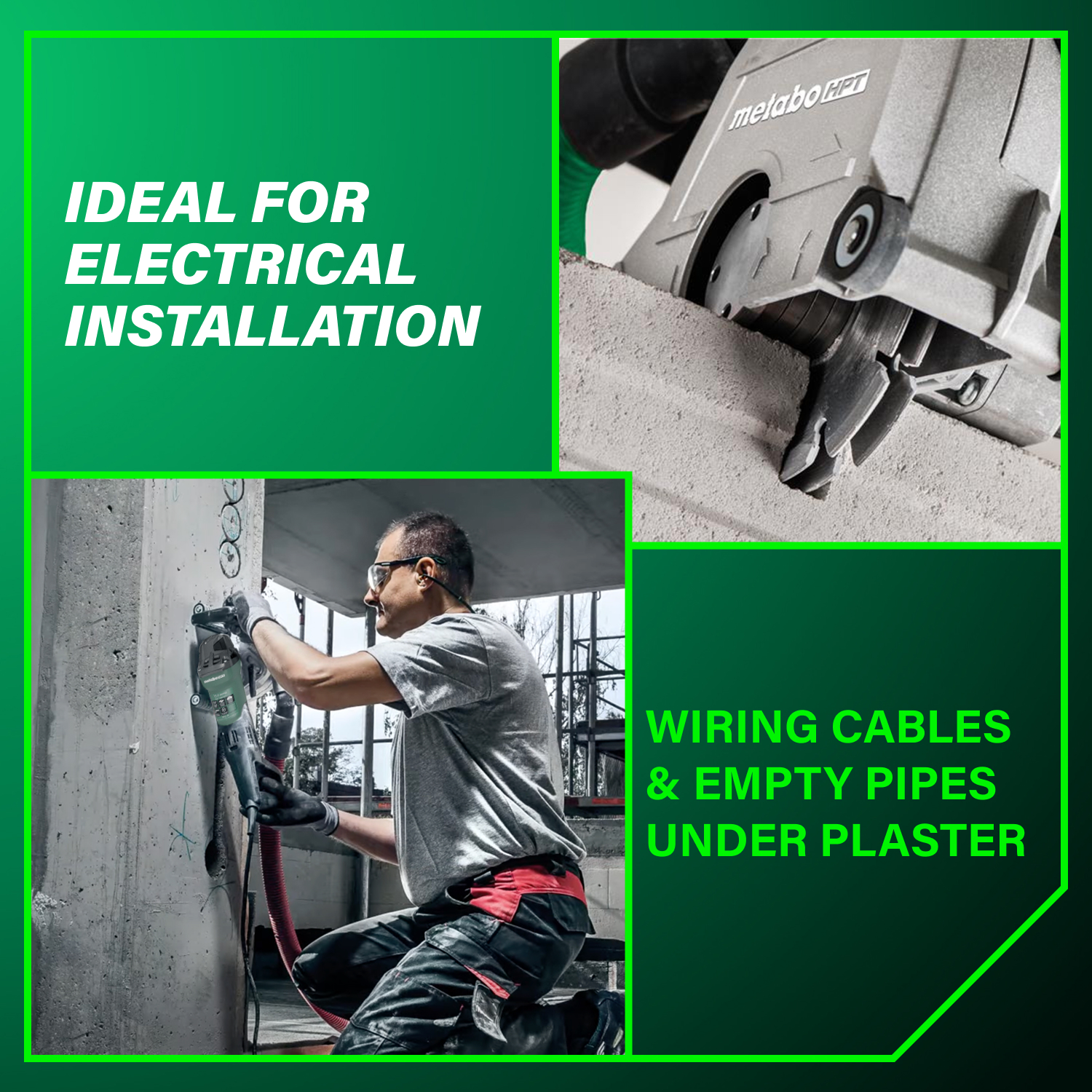

- IDEAL FOR: Electrical installation, wiring cables and empty pipes under plaster with cutting depths up to 3/8 - 1 9/16 "(40 mm)
- MAXIMUM PRODUCTIVITY: Due to a powerful motor, constant speed, and two-stage high-power drive

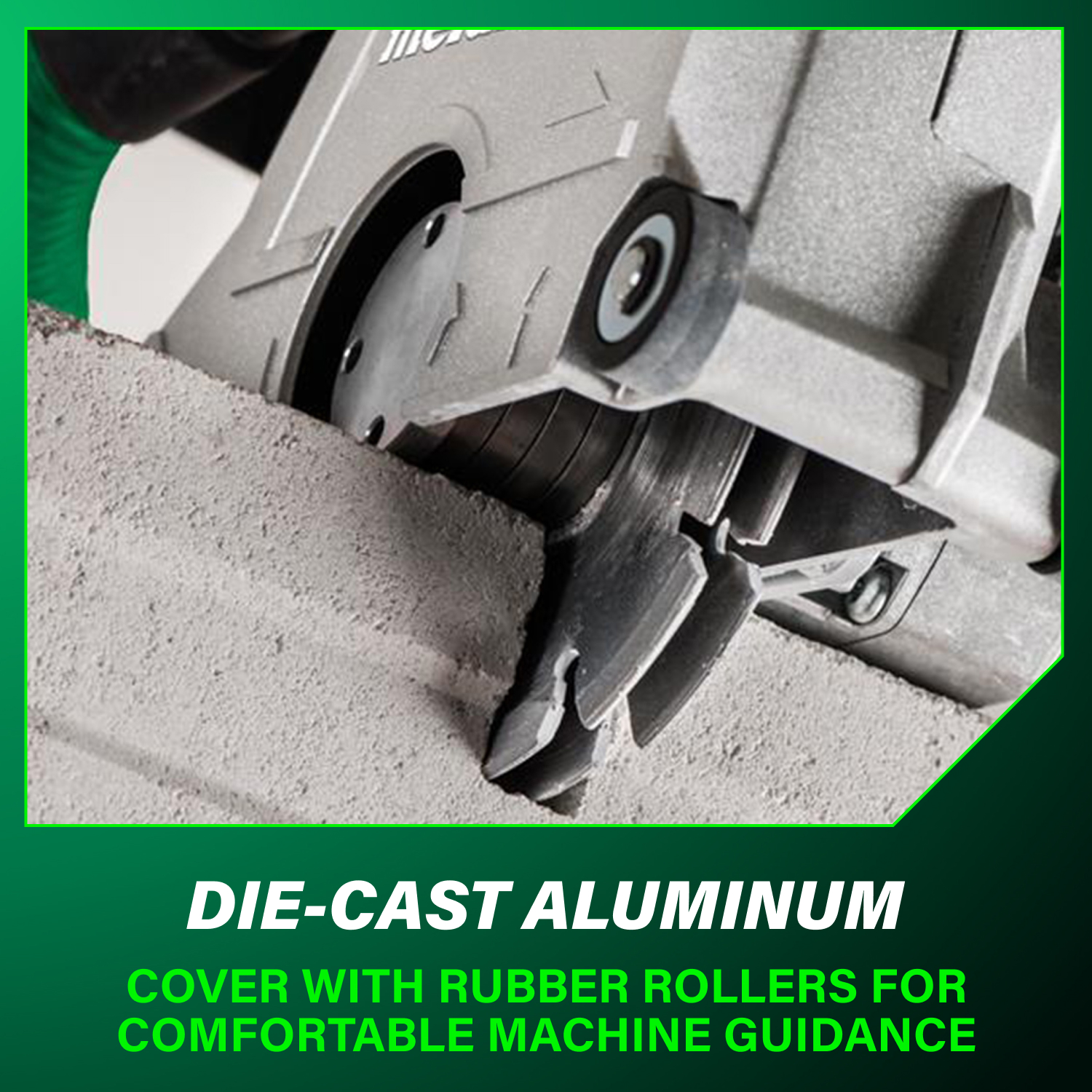

- DIE-CAST ALUMINUM: Cover with rubber rollers and optimum grip arrangement for comfortable machine guidance
- SLIDING CUT: For optimal view of the marking line

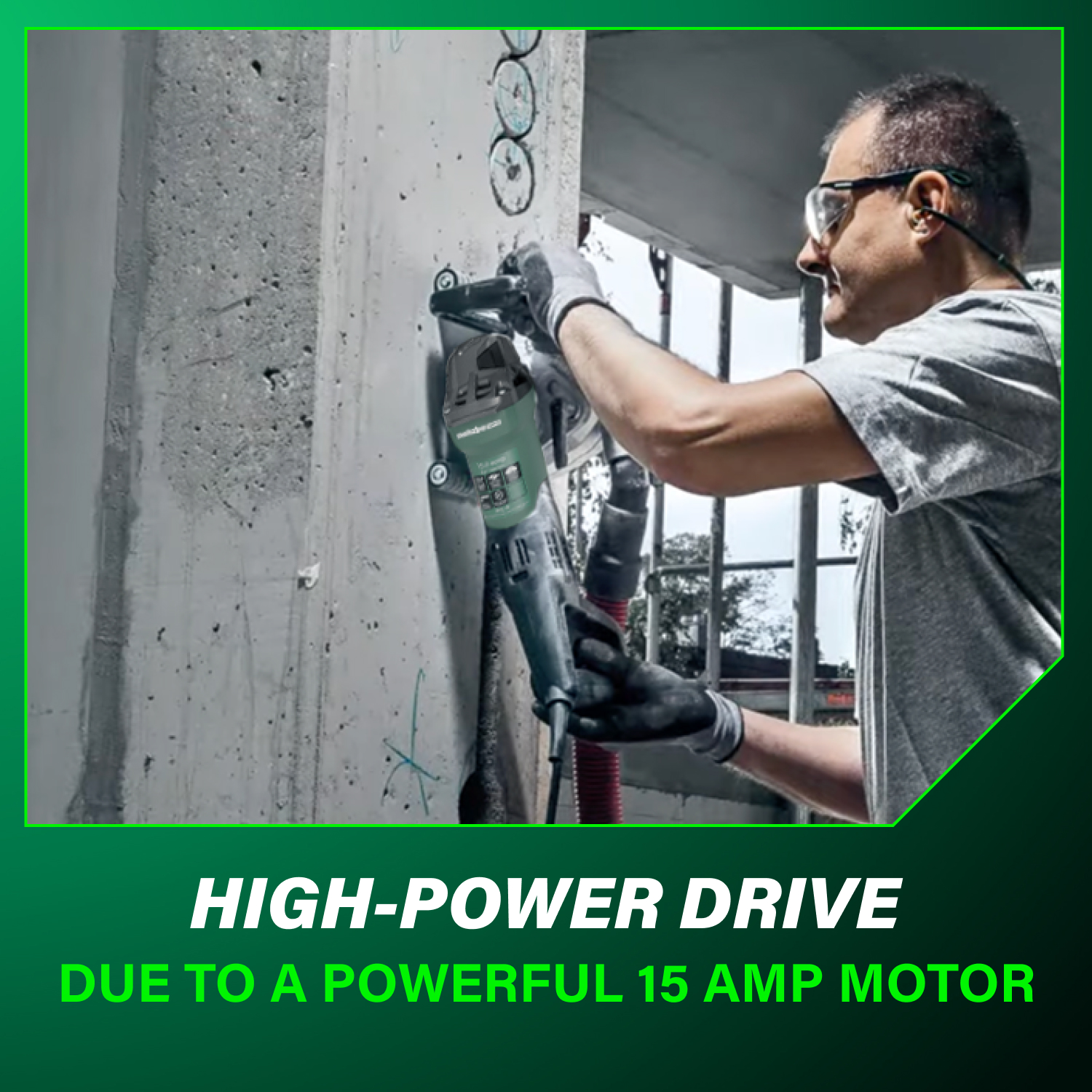

- HIGH-POWER DRIVE: Delivers maximum productivity due to a powerful 15 Amp motor, constant speed
- NO-LOAD SPEED: 5,000 RPM

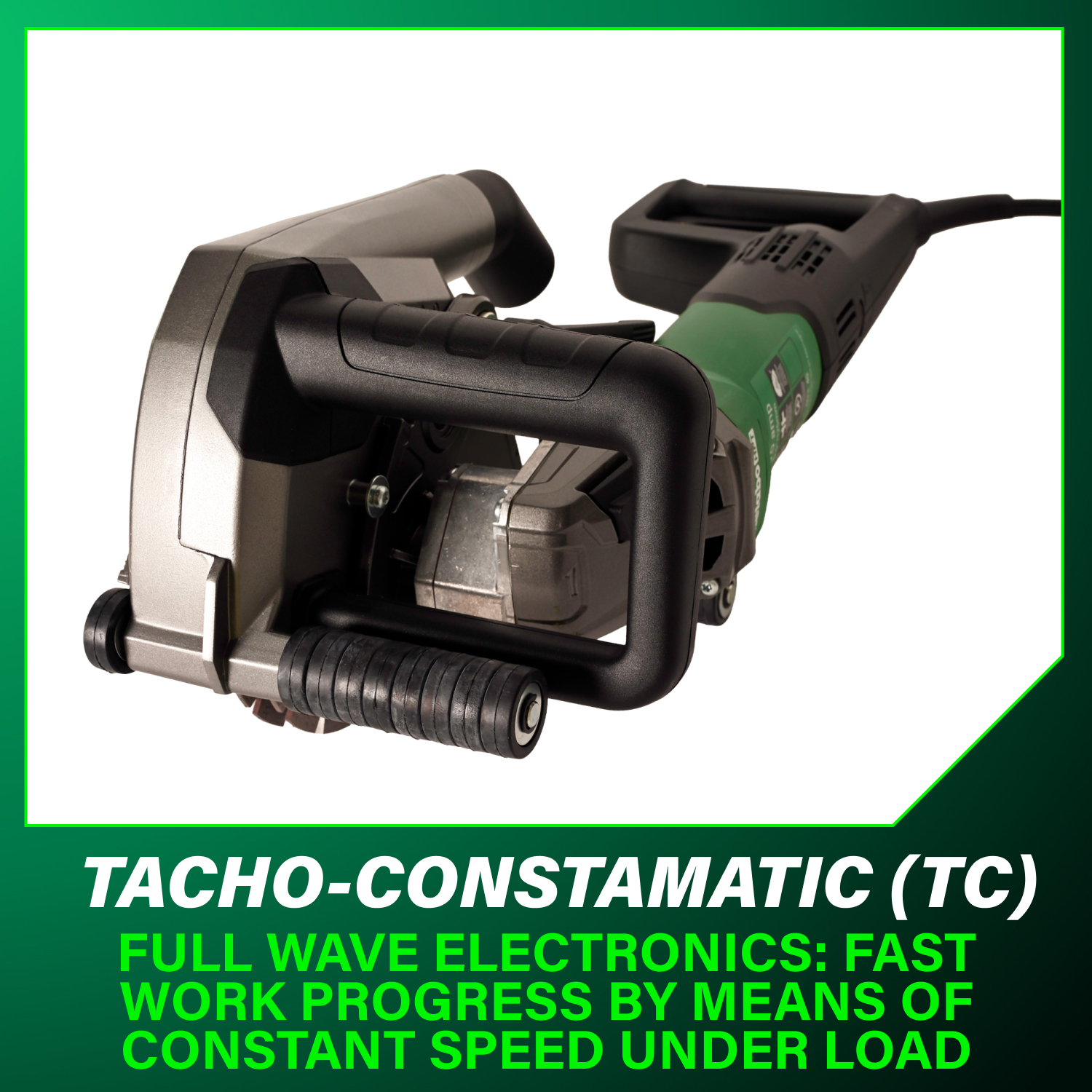

- TACHO-CONSTAMATIC (TC): Full Wave Electronics: fast work progress by means of constant speed under load
- TORQUE LIMITING CLUTCH: Mechanical decoupling of the drive for safe working should the disc stop unexpectedly

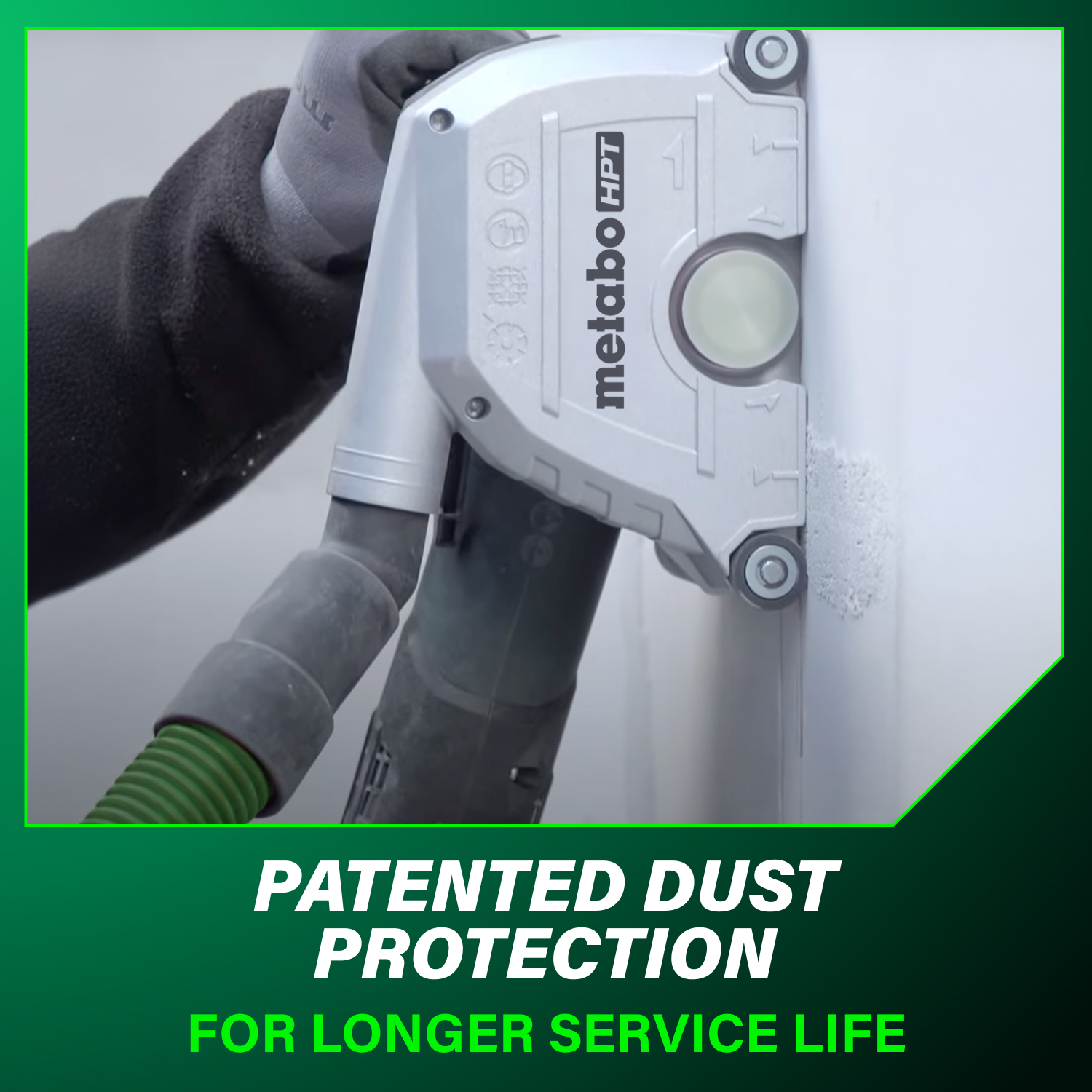

- DUST PROTECTION: Metabo HPT Long-life motor with patented dust protection for long service life
- LED SIGNAL: Informs about overload or active restart protection
- APPLICATIONS: Routing channels for electrical wiring, cables, and empty pipes into plaster, concrete, and masonry

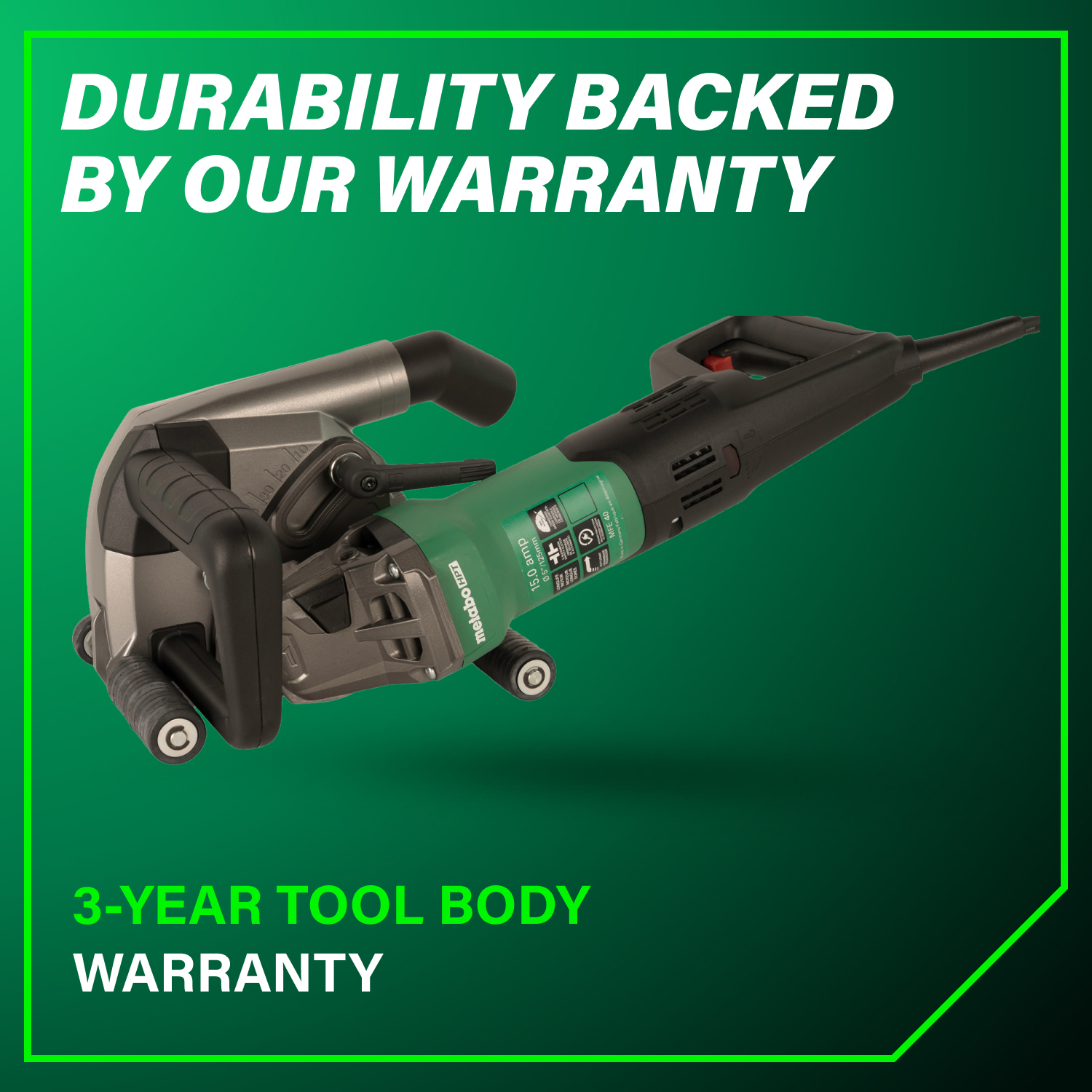

- WARRANTY: 3-year tool body only
- (1) 5" 15 Amps MFE 40 Wall Chaser (Concrete)
- Spacer Rings
- 2 Diamond Cutting Discs
- Flange Nut
- Spanner Wrench
- Chase Extraction Chisel
- Plastic Carrying Case
Specifications
| Amps | 15 AMPS |

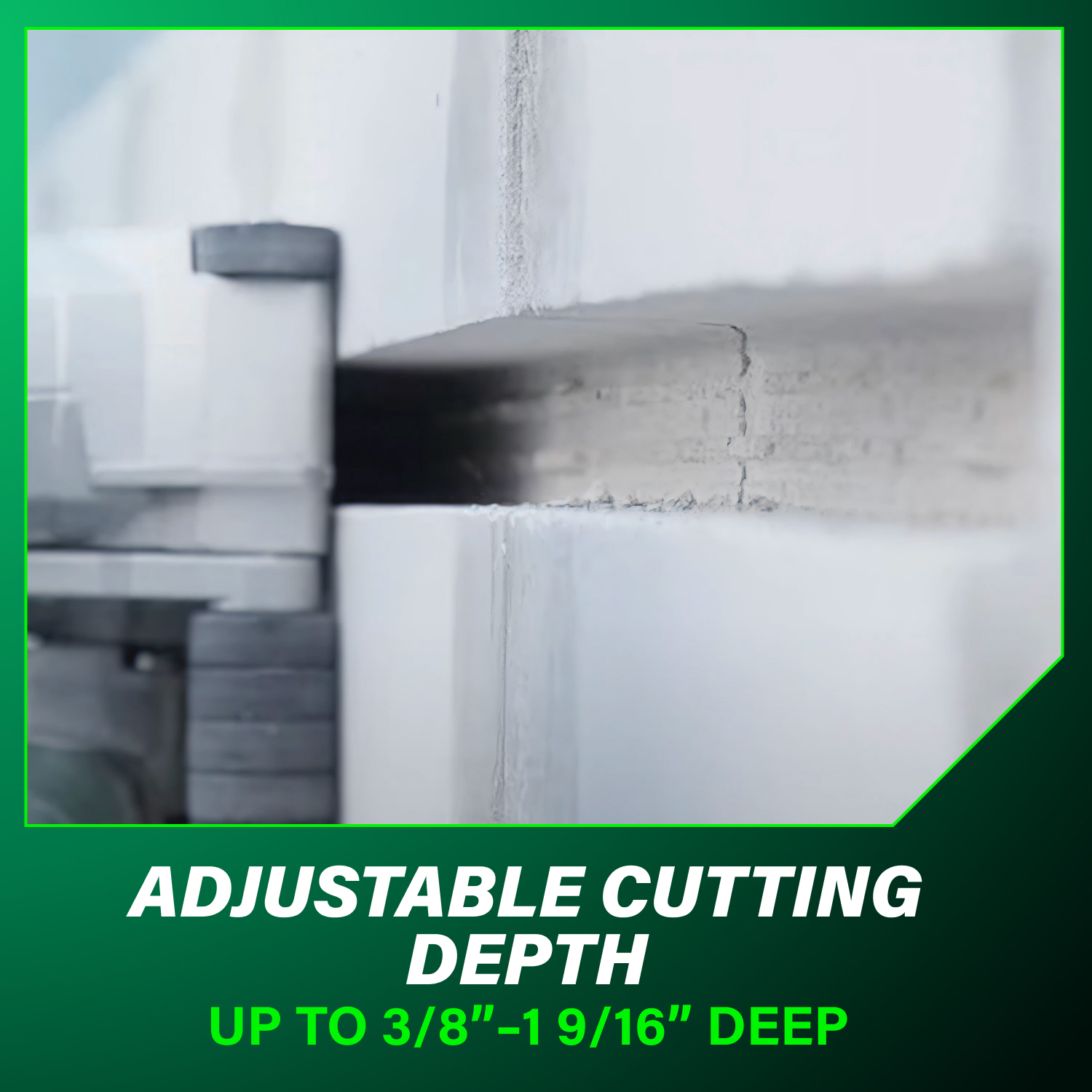

| Adjustable Cutting Depth | 3/8" - 1-9/16" |
| Possible groove widths | 3/8"/ 5/8"/ 7/8" / 1-1/8"/ 1-3/8" |
| Cutting Disc | 5" |
| Rated input power | 1700 W |
| Output Power | 950 W |
| No-Load Speed | 5000 RPM |
| Speed at Rated Load | 4400 RPM |

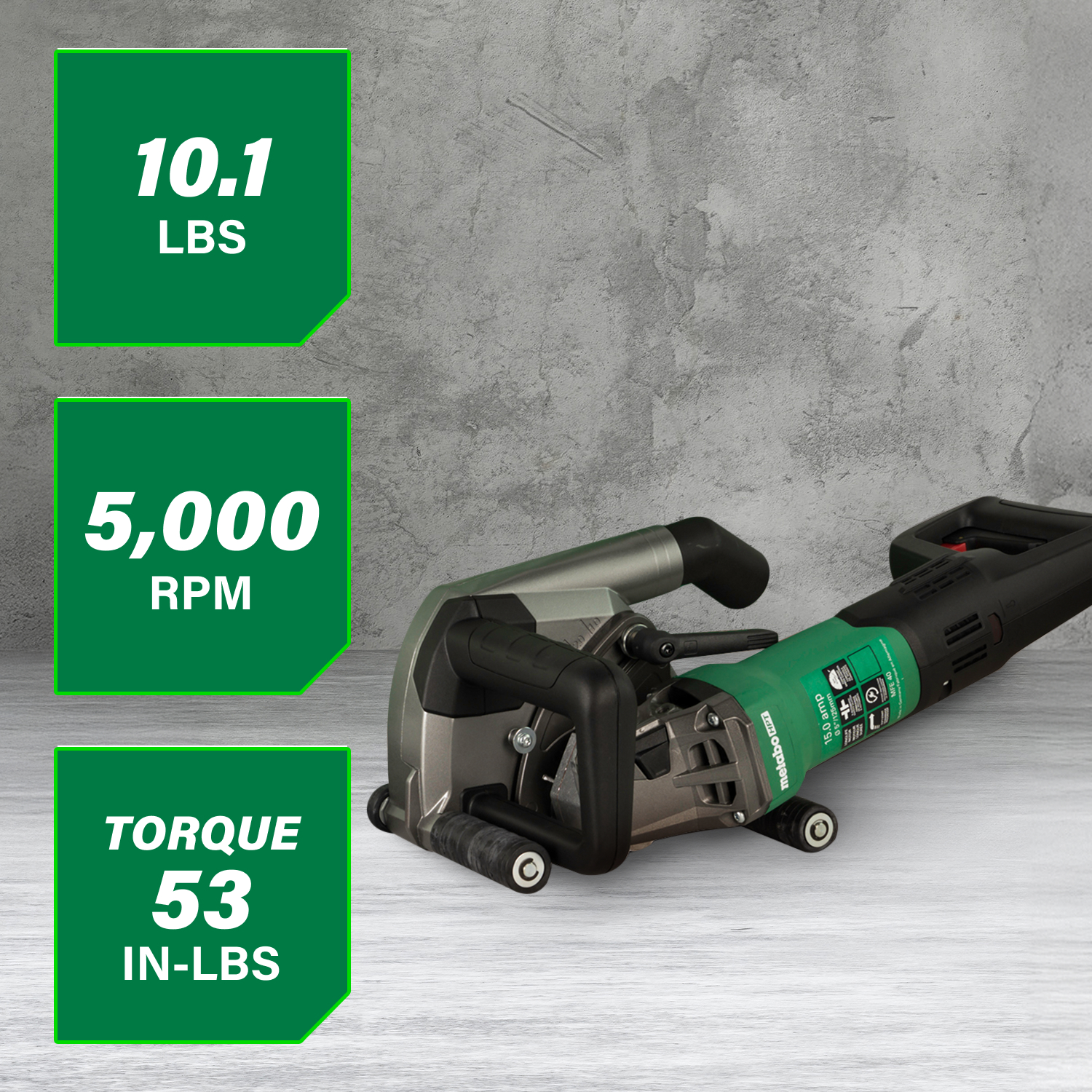

| Torque | 53 in-lbs |
| Weight (without power cable) | 10.1 lbs |
| Cable length | 13 ft |
Includes
- (1) 5" 15 Amps MFE 40 Wall Chaser (Concrete)
- Spacer rings
- 2 Diamond cutting discs
- Flange nut
- Spanner wrench
- Chase extraction chisel
- Plastic carrying case
