Universal Miter Saw Stand | Metabo HPT 115769M
Model# 115769M
- QUICK & EASY SETUP: Single action set-up & take-down
- DURABLE: Heavy-duty steel construction support up to 400 lbs
- LIGHTWEIGHT: Weighs only 55 lbs for easy transport
- HIGH CAPACITY: Can support up to 10' of material
- QUICK & EASY SETUP: Single action set-up & take-down
- DURABLE: Heavy-duty steel construction support up to 400 lbs
- LIGHTWEIGHT: Weighs only 55 lbs for easy transport
- HIGH CAPACITY: Can support up to 10' of material
Features

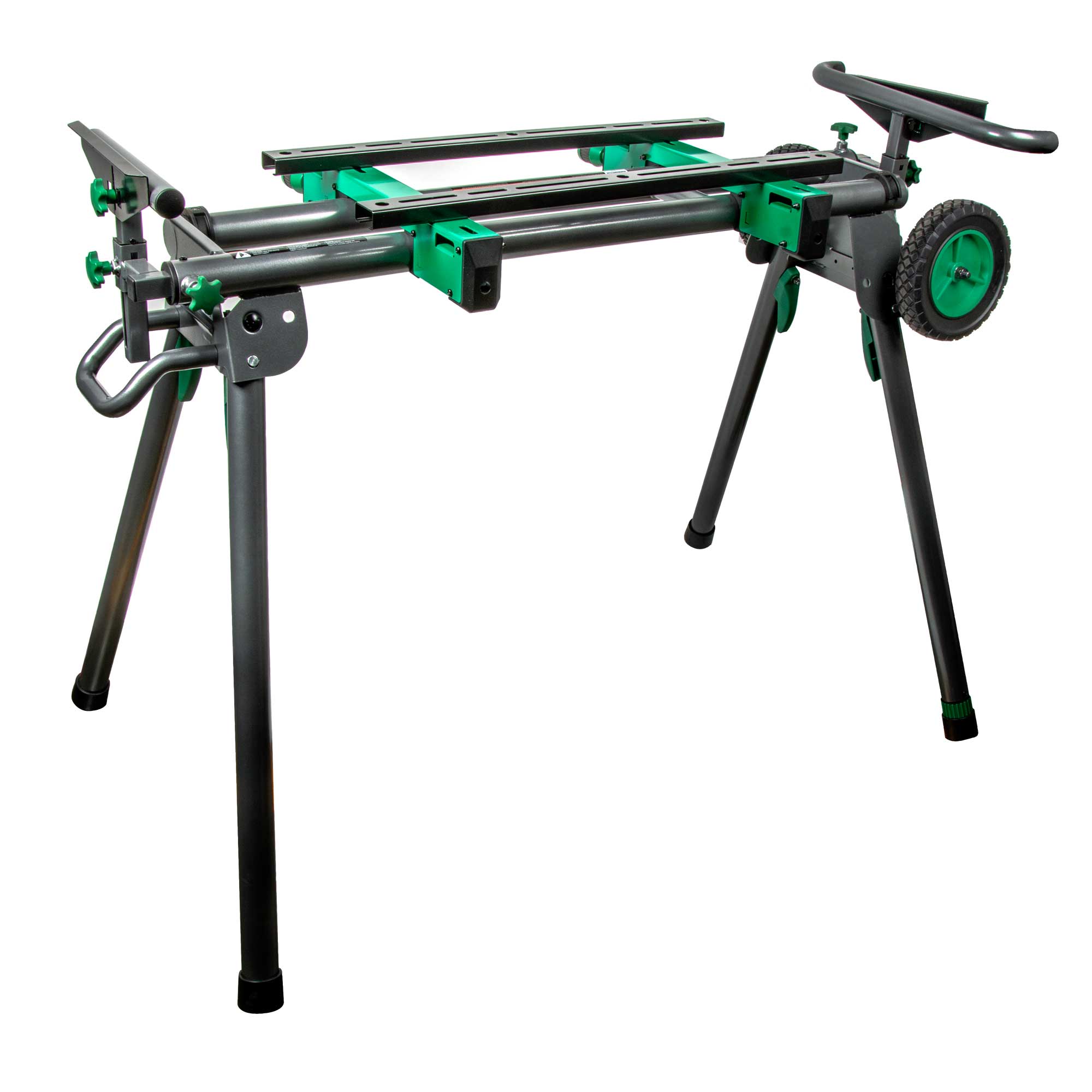

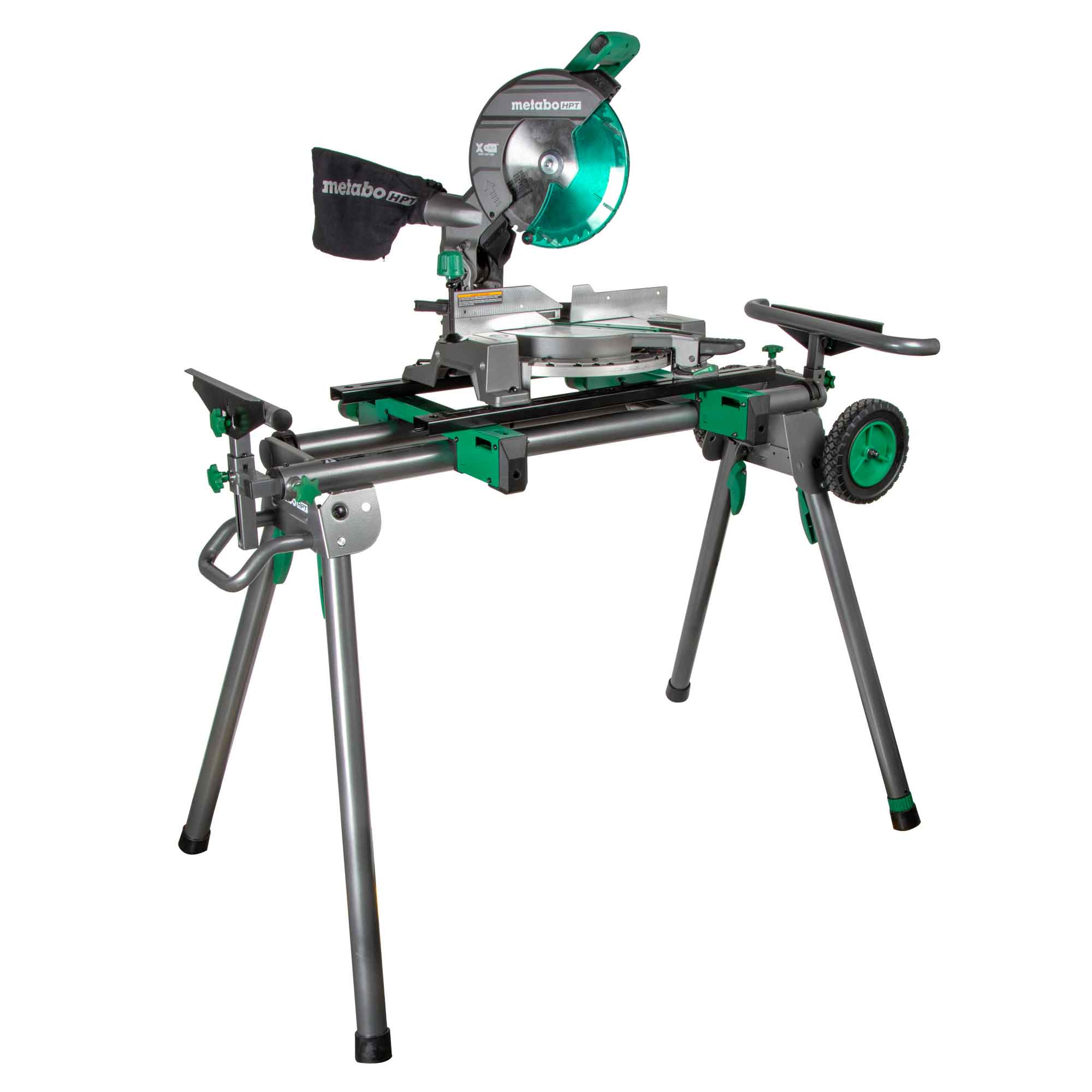

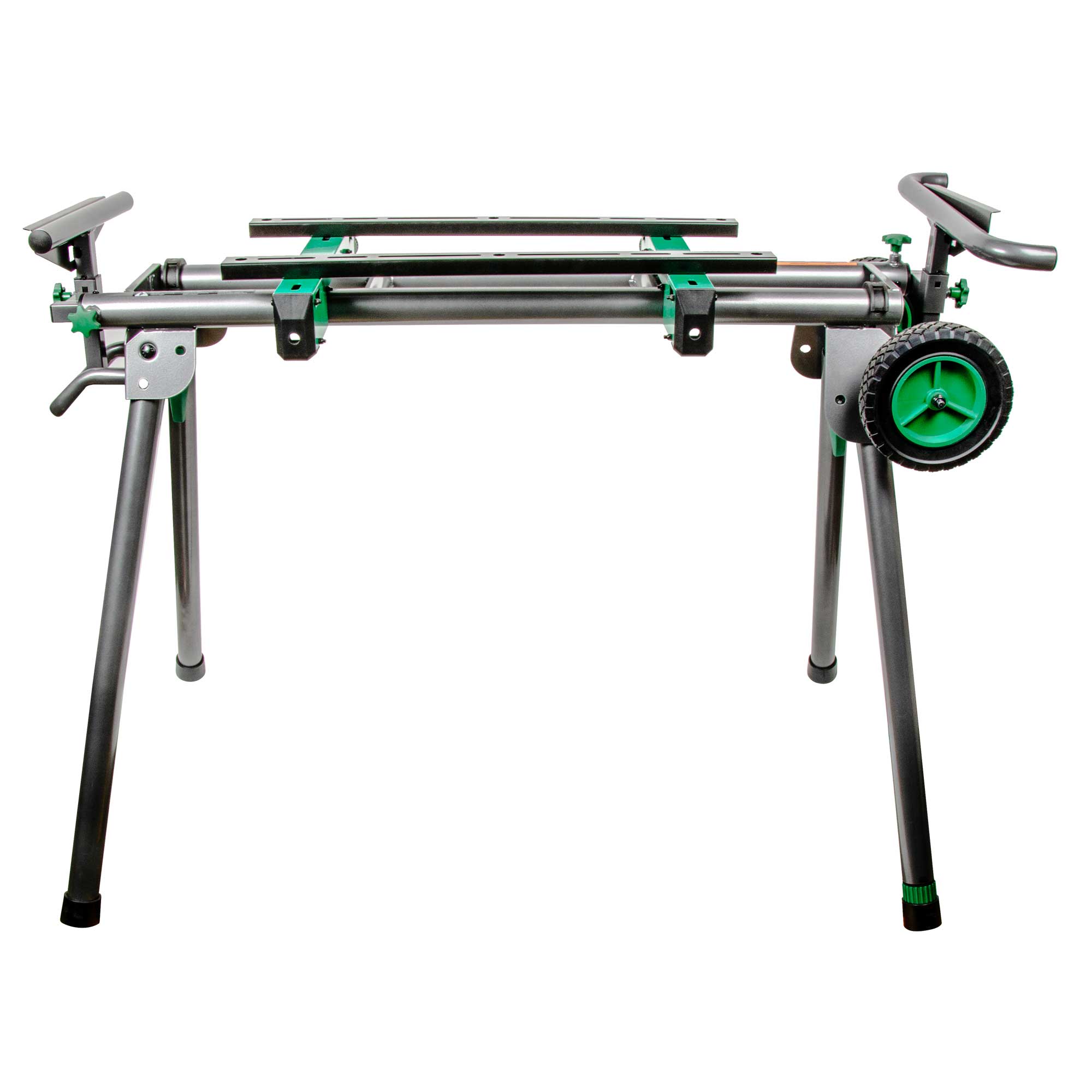

The Metabo HPT Universal Miter Saw Stand (115769M) features durable steel construction and supports sliding miter saws up to 12 inches. It includes auxiliary mounting brackets that make it fully universal, eliminating the need to create an additional mounting surface. Quick-release mounting brackets allow for easy attachment and removal of the miter saw from the stand. Non-marring rubber feet on the brackets enable the saw to be placed on any surface without risk of scratching.
The stand’s work supports extend up to 95.5 inches to accommodate longer materials, while adjustable material stops at each end allow for efficient repetitive cutting. Large 8-inch treaded wheels ensure easy transport even across the roughest jobsites.
MAKE. MOVE. GO
- LIGHTWEIGHT: Weighs only 55 lbs for easy transport
- HIGH CAPACITY: Can support up to 10' of material
- LIGHTWEIGHT: Stand weighs 55 lbs for easy transport
- EXTENDED REACH: Supports material up to 10 ft with miter stand extension supports
- HEAVY-DUTY: Steel tubular construction supports up to 400 lbs

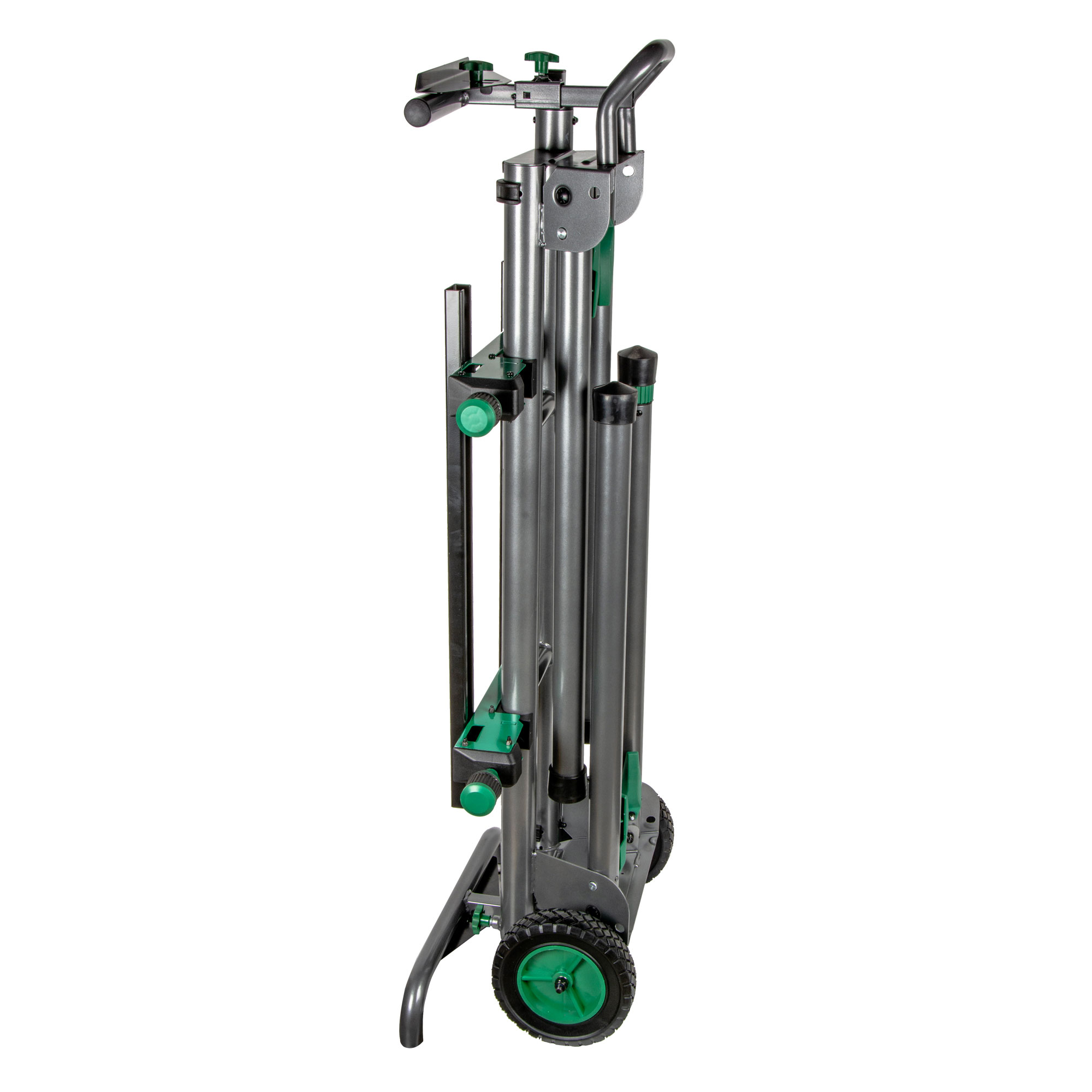

- SPACE-SAVING STORAGE: Folds and stands upright for compact, vertical storage
- IMPROVED ACCURACY: Leveling features help maintain stability and precision on uneven surfaces
- FAST SETUP: Tool-less height adjustment of material supports speeds up preparation time
- EASY MOUNTING: Quick-release brackets make attaching and removing miter saw effortless
- REPEATABLE CUTS: Adjustable material stops simplify repetitive cutting tasks
- USER-FRIENDLY DESIGN: Ergonomic knobs and levers for easy adjustments
- COMPATABLE WITH: C12RSH2S, C12FDHS, C12FDHB, C12RSH3, C3612DRAQ4
- WARRANTY: Covered by Metabo HPT’s Professional 5-Year Tool Warranty
Specifications
| Weight (Stand) | 54.7 lbs |
| Max Weight | 400 lbs |
| Extension Support Max | 120 in. *Do not use longer material |
| Stand Capacity | Saws w/ blades up to 12 in. |
| Stand Height w/Bracket | 34-15/64 in. |
| Stand Bed Size | 41-59/64 in. x 8-35/64 in. |
| Folded Stand Size | 52-61/64 in. x 21-27/64 in. x 12-23/32 in. |
| Extended Stand Size | 52-61/64 in. x 30-5/8 in. x 36-1/16 in. |
| Wheel Diameter | 8 in. |
| Construction | Tubular Steel |
| Warranty | 5-year |
Includes
- (1) Universal Miter Saw Stand
